Steel Frame Exhibition Hall Applications in Trade Shows and Expos

A steel frame exhibition hall is a large-span structural solution built from high-grade steel components — including H-beams, box columns, and roof trusses — specifically designed to create wide, column-free interior spaces. These structures are widely used in trade shows, industrial expos, and convention centers because they eliminate interior support columns, maximize usable floor area, and reduce overall construction time by 30–50% compared to cast-in-place concrete. Whether you need a permanent venue or a modular pavilion, this structural system handles dynamic loads, heavy suspended equipment, and demanding foot traffic with proven engineering reliability.

Understanding Steel Frame Exhibition Halls

Steel-framed display buildings are now the best choice for business-to-business clients in the infrastructure, logistics, and industrial sectors. Their appeal goes beyond how they look; the engineering features directly meet the real operational needs of modern trade show spaces.

What Makes Steel Frames Different

A solid steel frame, unlike wood or reinforced concrete, is made up of a column-beam grid that moves loads to the base efficiently. Some types of steel, like Q355B or ASTM A572 Gr.50, have a yield strength of 345 MPa or more, which means they can be bent in ways that concrete can't. This makes steel frames much safer in areas prone to earthquakes, where the ability to bend without breaking is a clear benefit.

Design Flexibility and Scalability

Modular steel display buildings can be 60–100 meters long and don't need inner beams, so exhibitors can set up their floors however they want. You can choose from curtain wall glazing or insulated metal panel covering for the outside, and you can add or remove structure bays as needed to fit your event's needs. This flexibility is especially helpful for EPC contractors who are in charge of building projects that have more than one step.

Environmental and Energy Performance

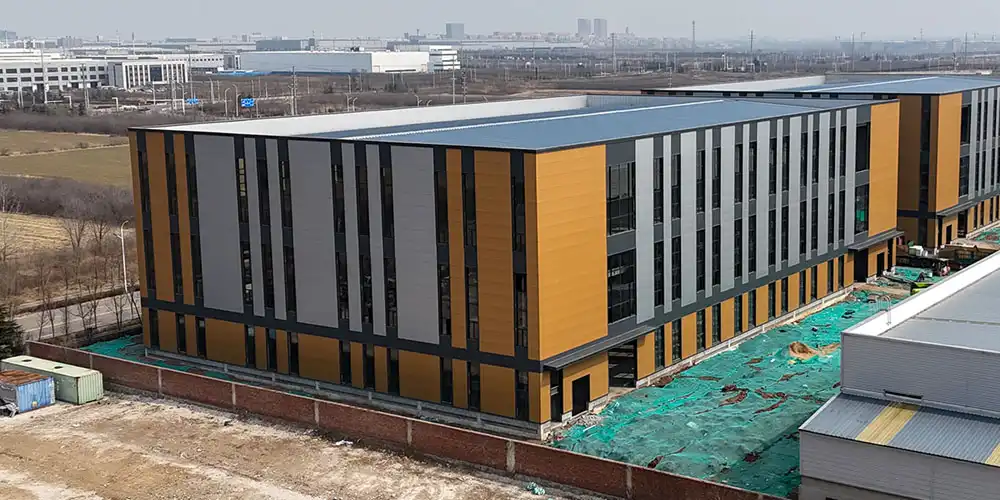

For an OEM steel frame exhibition space company, steel frame construction allows sandwich panel systems with PU or Rockwool insulation cores, which lowers HVAC costs for big rooms by a lot. Steel is also 100% recyclable, and modular bolt-together designs make it possible to recover all the material after taking it apart, which is becoming more important for buyers and green-certified expos.

Steel Frame Exhibition Hall Construction Process Explained

Understanding the build process helps procurement managers figure out wait times, set quality standards, and plan upkeep after the project is finished.

Site Preparation and Foundation Work

The first step is to do a geotechnical survey and build the base. Foundation costs are usually 15–25% lower for steel buildings than for concrete ones because steel buildings carry less dead weight. Anchor bolts are put in place using precise templates to make sure that the column alignment tolerance stays within ±2mm. This is a standard that Director Steel follows for all fabrication batches.

Fabrication and On-Site Assembly

Automatic welding H-beam production lines make steel parts away from the project site, which are then shipped to the site for bolt-together assembly. Before they are sent out, welds on main parts are tested with ultrasonic waves and magnetic particles. On-site, a trial assembly check at the factory makes sure that the measurements are correct, which keeps expensive installation delays from happening.

Roofing, Cladding, and Long-Term Maintenance

As the last layer of the envelope, roof and wall panels are put up. The structural frame is protected against rust for more than 50 years with little care. This is usually done with hot-dip galvanizing with a zinc coating layer of ≥85μm or an epoxy zinc-rich primer. The building will work properly for as long as it is used by checking the envelope seals once a year and the structural bolted connections every five years.

Comparing Steel Frame Exhibition Halls with Other Frame Types

For a steel frame exhibition hall, picking the right building material is a purchase choice that will affect the cost and efficiency of the building in the long run. The following table shows how steel rates in three important areas:

Steel vs. Wood Frames

The initial cost of building with wood may be cheaper, but wood is easily damaged by fire, water, and living things. A steel display building with an intumescent fireproof layer can keep out fires for two to four hours, which is what the local building code says. Steel can also span much wider distances, which makes it the only realistic choice for exhibition rooms wider than 20 meters.

Steel vs. Concrete and Aluminum

Although concrete is long-lasting, it takes longer to build with, has higher foundation loads, and can't be changed much once it's been poured. Aluminum frames are light, but they can't hold as much weight as is needed for heavy-equipment shows or systems that hang from the ceiling. Steel is a good choice for most business buyers because it balances structural performance with meeting deadlines.

Prefab Steel Frames vs. Custom-Built Halls

Prefabricated steel show buildings offer faster delivery, quality control in the factory, and lower costs per unit at scale. Custom-engineered halls can have specific architectural details, different front treatments, and structural calculations that are made for each site. Both choices are possible, based on the project's budget and schedule, and they can both be done through Director Steel's own design and fabrication service.

Procurement Guide: How to Select and Purchase Steel Frame Exhibition Halls?

Picking a dependable steel structure provider is just as important as coming up with the building plan. Here are the things that buying managers with a lot of knowledge put first.

Buyers should make a clear project brief before sending out a request for quotes. Include the needed floor space, the clear height, the desired wall type, the transport location, and the wind and snow loads for the area. This paperwork helps sellers give correct, comparable prices instead of just guesses.

Important requirements for suppliers that you should look over:

• Certifications: Look for ISO 9001/9004, CE certification, and compliance with AISC 360 (USA), Eurocode 3 (EU), or GB 50017 standards. These are objective indicators of fabrication quality and process control.
• Production capacity: A supplier with dedicated H-beam welding lines and in-house sandwich panel production can manage the full building envelope under one contract, which reduces coordination risk.
• Engineering capability: Suppliers who offer structural calculation, architectural layout design, and installation guidance allow you to consolidate design and supply — saving time and reducing interface errors between parties.
• Project portfolio: Review completed projects similar in scale and application to your own. Automotive showrooms, permanent trade centers, and modular World Expo pavilions all test different aspects of steel fabrication competence.

For an OEM steel frame exhibition space company, these selection criteria directly lead to less project risk and more predictable results when the project is delivered. Director Steel was founded in 2011 and has more than 12 years of experience in fabrication. It is CE and ISO 9004 certified and has more than 200 trained workers working in 40,000 square meters of enclosed production space. This makes it a qualified supplier for projects in the Americas, Africa, Southeast Asia, and other places.

Real-World Applications and Case Studies in Trade Shows and Expos

A lot of different types of show spaces use steel-framed buildings, and each one has its own specific structural needs.

International Convention and Trade Centers

Permanent mega-venues, like those that hold heavy equipment or construction machinery shows, need to have clear widths of at least 80 meters and floor loads that can hold displays of machinery that weigh several tons. Because steel is strong for its weight, these spans can be built without spending a lot on foundations. The shape of the roof trusses can also include skylights and clerestory windows to let in natural light and lower energy use during long working hours.

Modular and Temporary Expo Pavilions

Structures that can be put up and taken down quickly and with little waste are often needed for World Expos and area trade shows. Full disassembly and reassembly at a different spot is possible with bolted steel links, and all parts can be used again and again. This model is also good for event planners with limited funds for capital purchases because the building can be used again and again instead of being a lost cause.

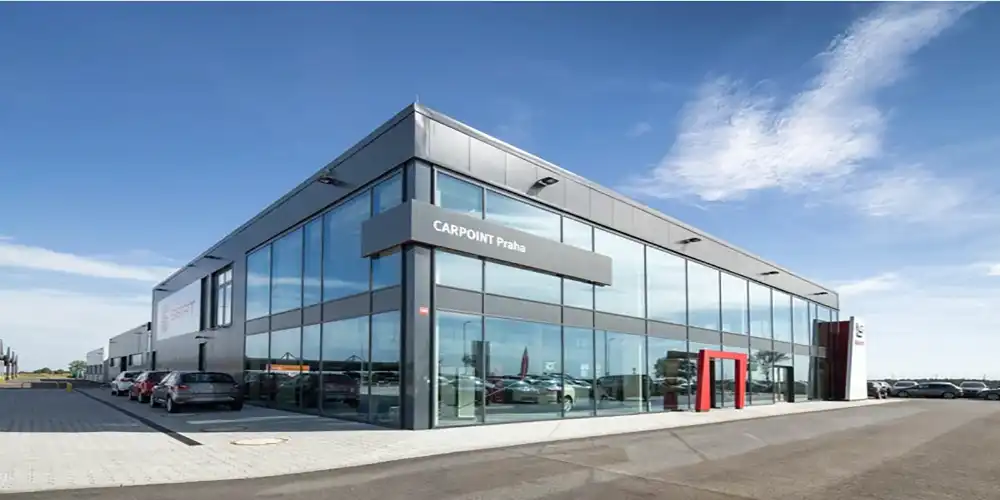

Automotive and Aerospace Showrooms

These business-to-business settings have specific needs for roof trusses: they need to be able to support point loads from vehicles suspended in the air, aircraft parts, lighting rigs, and HVAC systems. During the design phase, structural analysis software like Tekla Structures or SAP2000 is used to figure out the buildings' roof structures' defined collateral load capacity. This makes sure that the buildings will work safely during the event cycle.

Conclusion

Steel frame exhibition halls are a good choice for trade shows, meeting centers, and branded expo buildings because they are structurally sound, easy to set up, and cost-effective. With clear spans of more than 60 meters, fire resistance ratings of 2 to 4 hours, and service lives of more than 50 years with regular upkeep, these structures always work better in real-world display settings than other building methods. The best way to control project risk and cost is to work with a qualified fabricator who offers full-scope services, from structural calculations to installation advice. This is true whether you are looking for a permanent trade center or a temporary modular pavilion.

FAQ

Q1: How long does it take to build a steel frame exhibition hall?

Fabrication usually takes 6–10 weeks after the plan is approved, but this depends on how complicated the structure is and how big the job is. For a 5,000-square-meter house, putting it together on-site usually takes an extra 4–8 weeks. When compared to field-welded options, modular bolt-together systems cut down on time spent on-site by a large amount.

Q2: What insulation options work best in hot or humid climates?

Insulated sandwich panels with PU foam cores (density ≥40 kg/m³) work well in places where it is very hot. For places that are humid or near the coast, Rockwool-core panels offer better fire and moisture protection. The steel column-beam frame can work with both systems, and the choice can be made during the design phase.

Q3: How much can prefab systems be customized?

A lot of changes can be made to prefabricated steel display structures. The clear height, column spacing, facade material, door and window placement, and internal mezzanine levels can all be changed. Full custom engineering is offered for special architectural needs or load conditions at the site.

Q4: Does a steel exhibition building meet fire safety codes?

Yes, intumescent fireproof coatings expand when heated to shield the steel frame. This keeps the fire out for two to four hours, which is what most building codes require. Specifications for fire protection are confirmed during the design phase of the structure.

Get Your Steel Frame Exhibition Hall Quote from DFX Today

Since 2011, DFX (Qingdao Director Steel Structure Co., Ltd.) has sent steel buildings with CE certification to more than 30 countries. Our in-house team does all of the work for one contract: designing the building plan, calculating the structure, making the parts, and giving installation instructions. If you are planning a convention center, trade show place, or modular expo building, please email us at jason@bigdirector.com for a price that is tailored to your needs. We will get back to you within 24 hours as a reliable steel frame exhibition hall manufacturer.

References

1. American Institute of Steel Construction (AISC). Steel Construction Manual, 16th Edition. AISC, 2023.

2. Eurocode 3: Design of Steel Structures. EN 1993-1-1. European Committee for Standardization (CEN), 2022.

3. National Fire Protection Association. NFPA 5000: Building Construction and Safety Code. NFPA, 2021.

4. Steel Construction Institute. Design of Single-Span Steel Portal Frames (P252). SCI, 2020.

5. International Organization for Standardization. ISO 12944: Paints and Varnishes — Corrosion Protection of Steel Structures by Protective Paint Systems. ISO, 2018.

6. Modern Steel Construction Magazine. "Pre-Engineered and Prefabricated Steel Buildings: Applications and Procurement Trends." AISC, 2022.
