What Is a Steel Structure Shopping Mall and How Does It Work?

Modern shopping centers, like Steel Structure Shopping Malls, use premade structural steel members like H-beams, box columns, and lattice trusses as the main load-bearing structure instead of traditional reinforced concrete. This building method solves important problems in real estate development by cutting time-to-market by a huge amount. It lets fabrication happen off-site while foundation work is done on-site, which usually cuts down on construction times by 30 to 50 percent. Steel is light, which lowers the cost of the base. This makes it perfect for sites with weak soil because it allows for large, clear spans that are needed for flexible store plans.

Understanding Steel Structure Shopping Malls

The move toward commercial buildings with steel frames has changed how we plan for retail development. Compared to traditional building methods, these structures are better at what they do because they use high-strength steel parts made in China and other industrial hubs.

Core Components and Material Composition
High-Strength Low-Alloy (HSLA) steel, usually Grade Q355B or ASTM A572 Gr. 50, is used in steel building shopping malls. It has yield strengths of more than 345 MPa. The building's skeleton is made up of main parts like welded H-beams and box shafts that make up the steel frame structure. Composite floor decks, which are made of steel planks and concrete, improve diaphragm action and provide important sound dampening in store settings.

The building envelope is made up of the architectural cladding system, which also insulates and protects against the weather. Chemically, the steel is hot-dip galvanised or given zinc-rich epoxy primers to keep it from oxidising, which is especially important in coastal or humid areas. These protective processes make the structure last longer while keeping its good looks.

Applications Across Commercial Real Estate

Procurement managers can make better choices when they know where these systems work best. Steel-framed business buildings with plans that focus on customers work well for a variety of store forms.

Mixed-use buildings in cities are a big place where this can be used. Steel box columns and heavy transfer trusses are used to build shopping podiums in busy city areas. These support high-rise apartment or office towers above. The high load-bearing capacity can handle transfer loads while keeping wide open spans for the mall below. This makes valuable store space without affecting the upper floors' structural needs.

Large-span outlet centers use portal rigid frames or space frame tops to make huge, open rooms that look like warehouses and are good for outlet shopping and a lot of foot traffic. Because they are structurally rigid, these buildings do very well in areas with a lot of wind. This makes them perfect for places where weather resistance is very important.

Vertical mall additions are a popular way to solve the problem of growth. Because steel is so light—about one-third the weight of concrete—it is the best material for adding extra retail floors to buildings that already have them when strengthening the foundations would be too expensive or not possible. This meets the need for growth in complicated waste sites without needing major structural changes.

How Steel Structure Shopping Malls Work: Design and Construction Process

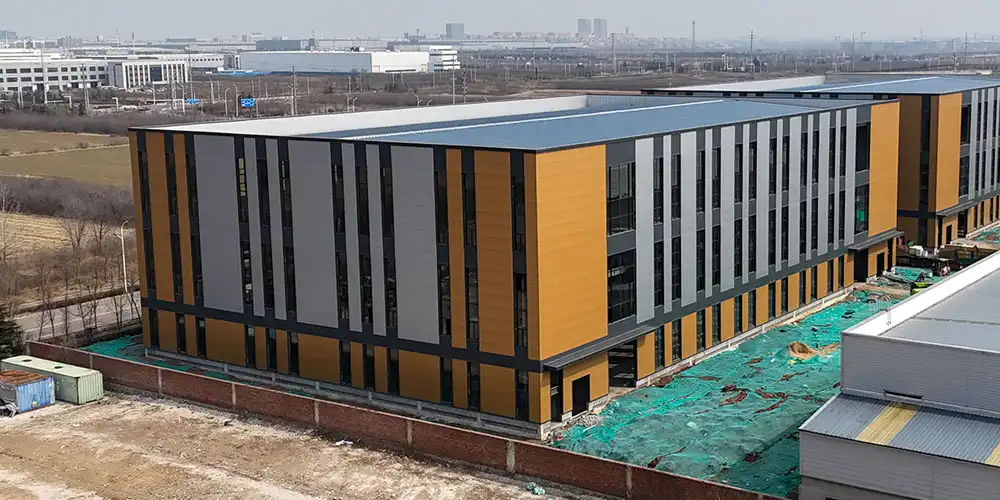

The engineering behind these business complexes includes careful planning and manufacturing, which makes the double slope shopping center steel structure different from other ways of building.

Design Principles and Structural Engineering

The design idea is based on modularity. Engineers make systems that can be expanded in the future, which is very important in retail settings that are always changing because the types of tenants and space needs are always changing. The structural design service starts with a careful study of the load lines to make sure that each part works together to keep the structure stable.

Large clear spans, or column-free zones, let Steel Structure Shopping Mall retailers plan their layouts in a variety of ways. Anchor tenants often have specific space requirements. Steel's high strength-to-weight ratio makes it possible to meet these needs without compromising the structure's integrity. Carefully designed space frames and long-span trusses make it possible to build large atriums that make shopping more enjoyable.

During the design phase, MEP (Mechanical, Electrical, and Plumbing) systems are coordinated. Service runs can be easily put through structural holes in steel buildings, which makes installation and future upkeep easier. Integrating facade systems makes sure that the building skin works well in terms of temperature control and looks good with the structure.

Fabrication and Assembly Workflow

The process of making things is called project-based production. Once the skeletal plan is approved, it is put together in a controlled factory setting. Six automatic welded H-beam production lines make about 20,000 tonnes of steel every year, making sure that the quality and dimensions stay the same. These kinds of advanced facilities are common at well-known makers.

Prefabrication takes place away from the construction site, where parts are made to exact specifications, usually within ±2mm. Laser scanning technology checks the accuracy of the dimensions of parts before they leave the plant. This results in expensive delays in putting them together on-site. This way of checking quality meets ISO9001 standards, and CE certification makes sure it meets international and European standards.

Compared to a standard building, putting things together on-site moves quickly. The steel members come pre-assembled and with connections that are designed to make installation go quickly. In critical moment connections, torque checks are done on high-strength bolt assemblies to make sure they have the right pre-tensioning force. Using this methodical approach speeds up the building process so that structures are often finished 30 to 50 percent faster than concrete alternatives.

Safety Standards and Regulatory Compliance

Following international rules is the basis for building structures that are strong. Projects follow AISC 360 (Specification for Structural Steel Buildings) and Eurocode 3, which makes sure that the structure's load paths are solid all the way through. A lot of attention is paid to fire resistance. Passive fire protection systems like intumescent paints or cementitious sprays can meet the 2-4 hour fire ratings that are needed to meet concrete safety standards.

In many markets, seismic planning is very important. Because steel is flexible, structures can absorb energy during earthquakes without destroying themselves, so people can stay safe even in big ones. Because it is so strong, steel is especially valuable in areas prone to earthquakes, where building codes demand high levels of performance.

Environmental laws are having a bigger impact on building choices. Steel buildings help reach environmental goals because the materials can be recycled, and there is less waste from construction. According to the American Institute of Steel Construction, steel has the highest recycling rate of any building material. In fact, structural steel usually has 93% recycled content.

Comparing Steel Structures with Traditional Mall Construction Methods

To back up their decisions about which materials to use, procurement managers and project engineers need clear comparative data. The differences in performance between steel construction and traditional concrete or brick construction have a big effect on how well the project turns out.

Material Performance and Durability

The way different materials behave in terms of strength is very different. Steel has consistent, expected qualities that are managed during production, but the strength of concrete rests on the conditions in the field while it cures. This stability makes engineers feel good about their load estimates and lowers the need for safety factors.

Throughout a building's life, its maintenance needs change a lot. When steel buildings are properly protected, they don't rust. This is especially true when hot-dip galvanisation meets ISO 1461 standards or marine-grade paint systems protect against rusting caused by salt. Rebar rust, spalling, and carbonation are problems that happen to concrete structures over time and need expensive repairs.

When designing the foundation for a steel structure shopping mall, weight is a very important factor. Steel buildings have about a third of the dead load of similar concrete buildings, which means they don't need as many foundations and cost less. In places with bad dirt, where deep supports would normally be needed, this benefit is very important.

Lifecycle Cost Analysis

When everything is taken into account, steel is often cheaper to build with at first. Even though the cost per tonne of materials may seem higher, the shorter building time directly leads to more money coming in sooner. Investors usually get a better return on their money because the structure can be built 30–50% faster than with concrete, which lets tenants move in earlier.

Energy efficiency affects how much it costs to run a building over its entire life. Better insulation systems and smaller building environments are made possible by steel structures, which lower the heating and cooling costs. Modern energy-efficient systems can be added, which is hard to do with older building methods, because the design is flexible.

Being able to adapt to future changes is a hidden value. Large-span possibilities mean fewer internal structural walls. This makes it easy for owners to change the layout of partition walls for new renters or fully remake floor plans without having to touch the structure. Because of this, the building's useful life is longer than that of hard concrete structures.

Seismic Resilience and Safety Certifications

The way steel works during shocks makes its benefits clear. Because the material is ductile, it can bend without breaking, which releases earthquake energy through controlled compression. Modern steel moment frames and braced systems offer solid resistance to horizontal force that has worked well in real earthquakes.

Regulatory certifications give procurement teams peace of mind. Structures that meet the requirements for a COC (Certificate of Conformity) and a PVOC (Pre-Export Verification of Conformity) show that they meet the standards of the target country. These licenses make it easier to get things approved and lower the risk of projects in foreign areas.

Procurement Insights: How to Source and Order Steel Structure Shopping Malls

To get through the procurement process, you need to know both the technical requirements and the capabilities of the suppliers. Project managers and procurement directors need to use organised methods to choose vendors and carry out projects.

Selecting Reliable Steel Structure Manufacturers

The first step in evaluating a supplier is to make sure they can actually make the product. Fabricators who have been in business for a while have large production facilities. Good makers usually have at least 40,000 square meters of protected production space with specialised equipment like automatic welded H-beam lines, sandwich panel production, and C/Z section steel lines.

When working on complicated business projects, experience really does matter. Suppliers with more than 12 years of experience making steel structures know all about the details of building a shopping center, from how the structure needs to hold weight to how it looks. Their track record with big office buildings, shopping malls, and business buildings gives you faith in their ability to do the job.

Verification of certification protects the project's goals. ISO9001 quality management systems make sure that production processes are always the same, and CE certification shows that products meet European safety standards. These credentials show that suppliers follow strict quality control procedures that are necessary for the safety and performance of structures.

Having in-house design skills makes project planning easier. Architectural design and detailing services from suppliers help customers with all stages of a project, from coming up with ideas and engineering them to making the buildings and putting them up on-site. This combined method makes it easier for people to work together and avoids problems that could happen when design purpose and manufacturing reality don't match up.

Understanding the Ordering Timeline

Buyers should be able to predict the steps that will happen in the buying process. After the initial inquiry, technical discussions take place to define the project's needs, including the size of the building, its weight limit, the site's conditions, and the client's aesthetic preferences. These needs are turned into preliminary engineering drawings by suppliers who offer structural design services.

The next step is design development. Engineers do complex estimates and plans for connections that meet both local building rules and the needs of the job. As part of this stage, façade systems and MEP infrastructure must be coordinated to make sure the whole thing fits together smoothly.

Scheduling production depends on how much the supplier can do and how complicated the project is. Lead times for standard shopping center structures are usually between 8 and 16 weeks, but custom solutions may need longer times. Suppliers who are open and honest give reasonable plans that include time for manufacturing, surface treatment, and quality control.

Logistics for delivery need to be carefully planned. Steel parts are shipped as modular assemblies that are designed to be easy to transport. Coordinating the end of production with the readiness of the site ensures that the move from the plant to the building site goes smoothly, reducing the need for storage and exposure to weather.

Prefab Versus Custom Solutions

For simple jobs, standardised premade solutions can save you money. These methods use tried-and-true link details and member sizes that cut down on the time and effort needed for planning and production. Prefab methods work best for shopping centers with regular layouts and standard spans.

Customised solutions are made to solve the specific problems of each job. Customised designs are needed when there are complicated site geometries, unusual loading conditions, or specific architectural needs. While engineering costs go up, custom solutions make the best use of materials and make sure the structure exactly meets the needs of the project.

Specifications for materials, the difficulty of production, the need for surface treatment, and the lengths needed for shipping are all things that affect costs. Buying in bulk and keeping the same source for a long time can save you money, especially for coders who are in charge of several tasks at once. By negotiating better prices and getting things done faster, working with dependable steel structure providers for sale gives you a competitive edge.

Future Trends and Strategic Benefits of Steel Structure Shopping Malls

The world of commercial construction is always changing, and steel structures are always on the cutting edge of new ideas. Understanding new trends helps people make decisions that will pay off in the future.

Advanced Prefabrication and Modular Technologies

Innovations in manufacturing speed up the building process even more. Automation in factories that make things improves accuracy while lowering the need for workers. Robotic welding systems make regular, high-quality links that are better than what can be done by hand, which makes structures more reliable.

Modular building methods include more than just individual parts; they also include whole building areas. Whole store pieces, including finishes, MEP systems, and facade elements, are delivered to the site ready to be put together quickly. This method cuts down on the need for on-site labour and delays caused by bad weather, which is especially helpful in tough construction sites.

Building Information Modelling (BIM) and other digital manufacturing technologies make it easier for design and production to work together. Conflicts can be found before manufacturing starts with three-dimensional models, which means that expensive changes can't be made in the field. This digital workflow makes it easier for architects, engineers, and fabricators to talk to each other, which makes sure that the design intent is carried out correctly in the finished building.

Smart Building Integration

IoT (Internet of Things) systems change how Steel Structure Shopping Mall shopping malls work. The sensor networks and equipment needed for smart building technologies are easy to fit into steel structures. Advanced tracking systems that track usage trends, minimise energy use, and predict repair needs can be easily installed in buildings with structural gaps and connection places that are easy to get to.

Building performance tracking for a shopping mall with a steel frame makes the building last longer. Sensors that are put into structures during building keep track of things like stress levels, deflections, and weather conditions. This information lets maintenance plans know about problems before they get too bad, which protects the long-term value of an asset.

Sustainability and Environmental Performance

Green building certifications are supported by recycled content in structural steel. The material can be recycled naturally, which is in line with the ideas of the circular economy and makes it appealing to owners and renters who care about the environment. As buildings reach the end of their useful lives, they are turned into materials instead of trash, which lowers their environmental impact over their whole lifetime.

There are many ways to lower your carbon impact. Better environmental performance is achieved through more efficient production methods, less building trash, and less energy used for shipping because of lighter weight. Compared to a standard building, energy-efficient features make lifetime pollution even lower.

Steel buildings are getting more and more backing from policymakers. Actions by the government to encourage green building and climate action make it easier for steel structures to be used. Putting a price on carbon and offering rewards for green building make steel-framed business buildings more financially viable.

Strategic Business Advantages

Return on investment is directly affected by how quickly a job is finished. Getting finished earlier means shorter lease-up periods and more money coming in faster. In retail markets with a lot of competition, this timing advantage can make or break a project by letting developers meet tenant demand before their competitors.

Better ROI comes from more than just faster construction. Better financial performance is caused by a number of factors, including lower foundation costs, less frequent structural maintenance, and the ability for tenants to make improvements. As store forms change, the ability to adaptively reuse items can help the economy last longer.

Being able to respond to changing market conditions is good for steel buildings. Retail industry problems can be avoided by being able to rearrange areas, add floors vertically, or totally change the uses of buildings. As e-commerce puts pressure on traditional store formats, buildings that can change into experiential or mixed-use retail spaces will still be valuable and useful.

Conclusion

Steel structure shopping malls represent proven technology delivering tangible advantages for commercial real estate development. The construction methodology addresses critical project needs: reduced time-to-market, flexible layouts, cost efficiency, and long-term adaptability. Material properties, including high strength, predictable performance, and excellent seismic resilience, provide safety and durability. Procurement processes have matured, with experienced manufacturers offering turnkey solutions from structural design through fabrication and erection support. As retail environments continue evolving, steel-framed commercial buildings provide the flexibility and performance characteristics necessary for sustained success in dynamic markets.

FAQ

1. How does fire resistance in steel shopping malls compare to concrete construction?

While unprotected steel loses strength at elevated temperatures, passive fire protection systems effectively address this characteristic. Intumescent paints or cementitious sprays applied during construction achieve the required 2-4 hour fire ratings that match concrete safety standards. These coatings expand when exposed to heat, creating insulating layers that maintain steel temperatures below critical thresholds. Regular inspection ensures fire protection remains effective throughout the building's service life.

2. What factors influence the total cost of a steel structure shopping mall?

Multiple elements determine project costs beyond basic material prices. Steel grade selection, structural complexity, span requirements, and fire protection specifications affect material costs. Fabrication complexity influences manufacturing expenses, while surface treatment choices impact both initial investment and maintenance requirements. Transportation distances and site accessibility influence logistics costs. Design customization, certification requirements, and erection support services also contribute to the total project investment.

3. Can steel structures accommodate future expansion as retail needs change?

The inherent flexibility of steel construction specifically supports future modifications. Large-span designs with minimal internal structural walls allow complete interior reconfiguration without structural intervention. Vertical expansions become feasible due to steel's lightweight characteristics, enabling additional floors where concrete structures would require extensive foundation reinforcement. Modular connection systems facilitate additions to existing structures, supporting phased development strategies that align with market demand.

Partner with DFX for Your Next Commercial Steel Structure Project

Selecting the right steel structure shopping mall supplier determines project success from design through completion. DFX brings over 12 years of specialized experience in commercial steel fabrication, operating 40,000 square meters of advanced production facilities with capacity for 20,000 tons of welded H-beams annually. Our ISO9001-certified manufacturing processes and CE-compliant products ensure international quality standards. We provide comprehensive services including structural design, fabrication, and coordination with MEP and façade systems—delivering true turnkey solutions for retail centers, shopping complexes, and commercial plazas. Our in-house architectural design team supports your project from initial concept through on-site installation guidance. Contact jason@bigdirector.com to discuss your commercial development needs and discover how our steel structure shopping mall manufacturer capabilities can accelerate your project timeline while optimizing costs.

References

1. American Institute of Steel Construction. (2016). Specification for Structural Steel Buildings (ANSI/AISC 360-16). Chicago: AISC.

2. Chen, W.F., & Lui, E.M. (2005). Handbook of Structural Engineering, Second Edition. Boca Raton: CRC Press.

3. Lawson, R.M., & Ogden, R.G. (2008). Application of Modular Construction in High-Rise Buildings. Journal of Architectural Engineering, 14(2), 148-153.

4. Piroozfar, P.A.E., & Piller, F.T. (2013). Mass Customisation and Personalisation in Architecture and Construction. London: Routledge.

5. Smith, B.S., & Coull, A. (1991). Tall Building Structures: Analysis and Design. New York: John Wiley & Sons.

6. Trahair, N.S., Bradford, M.A., Nethercot, D.A., & Gardner, L. (2017). The Behaviour and Design of Steel Structures to EC3, Fifth Edition. Boca Raton: CRC Press.
