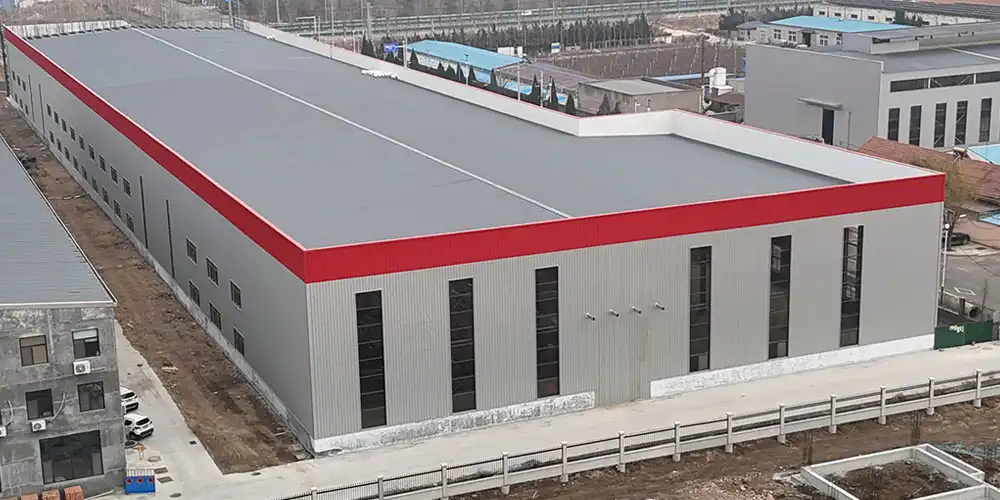

Multi-span Steel Workshop - A Comprehensive Guide

Selecting the appropriate structural solution can make or break your project's budget and Multi-span Steel Workshop schedule when designing a large-scale factory or industrial building. A clever engineering strategy that strikes a balance between large interior space and cost-effective construction is exemplified by a multi-span steel workshop. This design maintains structural efficiency while creating nearly infinite floor area through the smart placement of internal columns to support several parallel roof sections. Multi-span layouts offer affordable options for manufacturing plants, logistics warehouses, and processing facilities that require both operational flexibility and budgetary caution, in contrast to standard clear-span structures that become unaffordable beyond specific widths.

Understanding the Engineering Logic Behind Multi-Bay Workshops

A multi-span steel building's load distribution approach is its primary benefit. Imagine a huge production floor where people, goods, and equipment are spread out over hundreds of meters. Without intermediate support, a single-span design would need massive structural members to span that distance, which would quickly increase steel tonnage and project costs.

To overcome this difficulty, steel factory designers split the overall width into manageable chunks, usually between 18 and 30 meters per bay. Internal columns significantly lessen the bending moments that roof beams must endure by carrying vertical loads from the roof structure down to the foundation. When compared to comparable clear-span alternatives, this method reduces steel consumption by 15 to 30 percent.

Welded H-section beams made of ASTM A572 Gr50 or Q355B steel, which have yield strengths greater than 345 MPa, are used in the structural structure. By positioning heavier sections where forces concentrate and lighter profiles where loads decrease, variable cross-section profiles optimise stress distribution along beam lengths. Modular bays made of portal frames joined laterally enable phased construction or future extension.

Through meticulous surface preparation, weather resistance starts at the manufacturing stage. Shot blasting to Sa2.5 cleanliness criteria is one of the procedures used to fabricate steel structures. Next, epoxy zinc-rich primers or hot-dip galvanisation with a minimum coating density of 600g/m² are applied. These treatments guard against corrosive substances and humid industrial environments.

Industries That Benefit Most From Multiple Ridge Buildings

The main market for steel workshop construction is manufacturing operations, especially those that need separate production zones inside a single facility. Separate bays are used for component processing, quality control, and final assembly in automobile assembly lines, machinery fabrication facilities, and electronics manufacturing complexes. Bridge cranes with ratings ranging from 10 to more than 100 tonnes can be mounted on the internal columns to handle materials across several work areas at once.

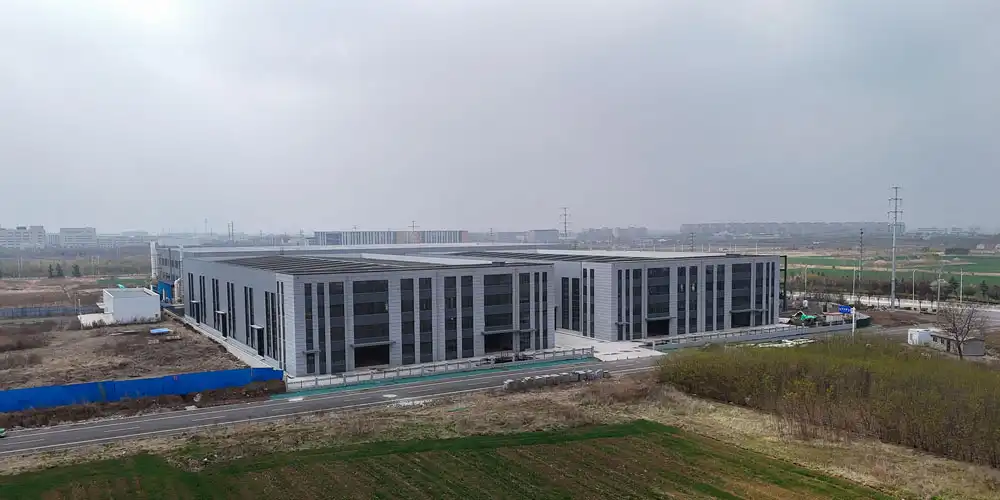

Logistics and warehousing operations favor large Large scale factory span steel halls for their ability to maximize cubic storage capacity. Distribution centers handling diverse product categories benefit from internal columns that serve as natural dividing lines between climate-controlled sections and ambient storage zones. The structural rigidity of interconnected portal frames prevents issues with thermal expansion across footprints exceeding 50,000 square meters, especially when expansion joints are properly engineered into the design.

Prefabricated steel workshops are useful for agricultural businesses constructing cattle facilities or poultry houses because of their versatility. Internal columns maintain roof load capability while enabling the installation of lighting infrastructure, ventilation ducts, and feeding systems. Future capacity increases are made easier by the modular design, which allows for the installation of more bays without interfering with ongoing operations.

Facilities that handle chemicals and make textiles work in conditions where airborne pollutants and humidity hasten corrosion. In addition to supporting intricate HVAC installations, galvanised steel frame workshops offer the essential division for wet and dry processing areas. Without the need for suspended ceiling systems, the ceiling grid made of purlins and rafters supports electrical conduits, ventilation piping, and process monitoring devices.

Critical Design Considerations That Impact Project Success

Steel workshop layout planning begins with operational requirements analysis. Project managers must map workflow patterns, material flow trajectories, and equipment placement before finalizing column grid spacing. Placing internal columns along natural division lines between work cells minimizes interference with production activities while maintaining structural efficiency.

Foundation design demands careful attention to soil bearing capacity and settlement characteristics. Unlike lighter structures, industrial steel workshops impose concentrated loads at column bases. Geotechnical investigations should precede engineering to identify suitable footing types—isolated pads for stable soils, continuous strip footings for moderate conditions, or pile foundations where bearing capacity proves insufficient.

Steel workshop insulation requirements vary dramatically by application,  large-scale factory, and climate zone. Manufacturing facilities in tropical regions prioritize ventilation and heat reflection, often specifying insulated sandwich panels with 50 to 100mm thick cores. Operations in colder climates may require 150mm insulation to maintain interior temperatures and prevent condensation. The multiple ridge building profile complicates insulation continuity at valleys where adjacent roof slopes meet; properly detailed valley gutters with waterproof backing prevent moisture intrusion.

Crane runway beam installation introduces dynamic loading scenarios that static calculations cannot fully capture. When multiple cranes operate simultaneously in adjacent bays, vibrations and impact forces can accumulate. Steel column design must account for lateral thrust from crane braking forces, typically addressed through bracing systems or moment-resistant connections. Deflection limits become critical—excessive beam sag throws crane wheels out of alignment, accelerating wear on both structural and mechanical components.

Expansion joints placement prevents stress accumulation from thermal cycles. Steel structures experience dimensional changes with temperature fluctuations; a 100-meter-long building can expand or contract several centimeters seasonally. Engineers typically introduce expansion joints at 60 to 90-meter intervals, using slotted bolt holes and sliding connections that accommodate large-scale factory movement without generating internal forces.

Navigating Quality Control Throughout the Supply Chain

Procurement managers shouldering responsibility for industrial steel structure projects face the challenge of verifying quality before shipment and during steel workshop erection. A systematic inspection protocol safeguards against costly field modifications.

Raw material verification starts with Mill Test Certificates confirming chemical composition and mechanical properties. Steel plates and sections must meet specifications for carbon, silicon, manganese, phosphorus, and sulfur content. Tensile strength, yield point, and elongation values should align with GB/T 1591 or ASTM standards relevant to your jurisdiction.

Steel structure welding quality determines structural integrity under operational loads. Critical connections on main framing require 100 percent ultrasonic or radiographic inspection to detect subsurface defects like porosity, slag inclusions, or lack of fusion. Fillet welds connecting secondary members undergo magnetic particle inspection, revealing surface cracks invisible to visual examination. Weld procedures should reference AWS D1.1 or ISO 5817 standards with documented welder qualifications.

Dimensional accuracy verification prevents assembly headaches on-site. Pre-punched bolt holes must align within ±1mm tolerance to avoid forced fitting that introduces residual stresses. Column straightness and beam camber measurements ensure components arrive ready for erection without field corrections. Request detailed dimension inspection reports covering anchor bolt patterns, connection plate positions, and overall member lengths.

Surface treatment thickness directly correlates with service life in industrial environments. Dry film thickness gauges measure paint or galvanization depth at multiple points per component. Minimum coating specifications should appear in purchase agreements with rejection criteria for non-compliance. Inadequate protection leads to premature corrosion requiring expensive Multiple ridge building maintenance interventions.

Addressing Common Questions From Project Stakeholders

Construction contractors often enquire about the differences in steel construction material requirements between clear-span and multi-span designs. Wider facilities benefit from multi-bay arrangements, whereas narrower buildings may choose clear-span simplicity. The crossover point usually happens at 40 meters overall width. For proper comparisons, steel tonnage calculations should account for multiple ridge building, including purlins, bracing, and connections, in addition to the main structure.

Crane capacity over several bays should be made clear, according to engineering directors. Although the construction can handle crane runway beams on both outside and interior columns, load case analysis that takes worst-case situations into consideration is necessary for simultaneous operation. Depending on the duty cycle classification and crane speed, dynamic amplification factors usually fall between 1.1 and 1.25.

The ideal span lengths in multi-bay buildings are questioned by facility operators. Spans between 18 and 30 meters are typically preferred for economic efficiency. The financial benefits that make multi-span systems appealing are undermined by the need for heavier beam sections due to wider spans. Deviation from this range may be justified by site-specific criteria such as production cell dimensions or crane coverage needs.

Information regarding steel workshop maintenance procedures is necessary for maintenance planners. Bolt tightness at connections, the state of the surface coating, and the operation of the drainage system should all be checked on a regular basis. Particular attention should be paid to valley gutters between roof slopes because debris buildup obstructs water flow, resulting in ponding that overloads structural components and speeds up corrosion.

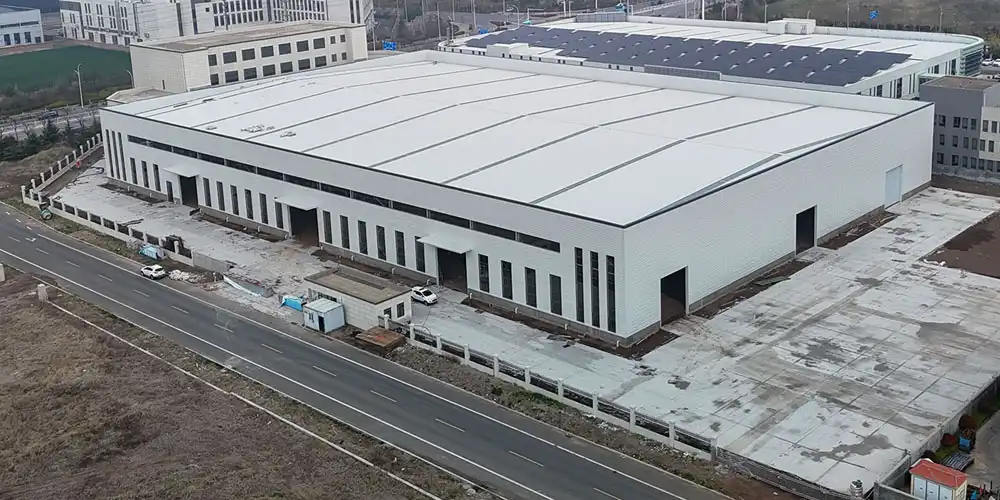

Operations managers ask about temperature control and ventilation techniques used in steel workshops. Many applications might benefit from natural ventilation using sidewall louvres and ridge vents, but facilities with Multiple ridge building heat-generating activities may need powered exhaust fans or evaporative cooling systems. The multiple ridge building profile increases the effectiveness of cross-ventilation by providing options for ventilator placement along each ridge line.

Real-World Performance Across Global Markets

Recently, a Nigerian building contractor used multi-span steel structure engineering concepts to finish a 12,000-square-meter logistics warehouse. The facility was split into five 24-meter bays by the project, which were supported longitudinally by internal columns spaced 8 meters apart. Compared to a different clear-span plan, this arrangement used 22% less steel while still supporting 10-ton overhead cranes. The 38-day delivery period from manufacturer to on-site erection satisfied the client's demanding operational readiness deadline.

A 6,000-square-meter growing facility with four 20-meter spans increased capacity for an Australian chicken company. Steel roof truss designs that supported automated feeding tracks suspended from purlins and maximised ridge height for heat stratification were given priority in the agricultural project. Ammonia-laden environment corrosion hazards were mitigated via insulated sheathing and a galvanised secondary frame. Construction could take place during off-peak production cycles with no interference with ongoing operations due to the modular concept.

An electronics assembly factory with clean room zones inside a multi-bay steel framework was created by a Philippine manufacturing investor. The 15,000-square-meter building used 25-meter spans with internal columns placed in line with partition walls dividing various levels of cleanliness. Disturbances from nearby heavy machinery regions were stopped from spreading by vibration isolation pads underneath precision equipment columns. The project showed how various operational requirements can be accommodated under a single structural envelope through careful steel workshop foundation design.

Conclusion

For your industrial complex, choosing a multi-span steel building layout is a strategic choice that strikes a balance between operational requirements and budgetary constraints. This method is perfect for manufacturing facilities, logistical hubs, and agricultural activities that need large covered areas because of the engineering reasoning behind distributed load routes, modular expansion potential, and crane integration. Strict quality control during the construction and erection of steel structures guarantees structural performance that satisfies international requirements. Project stakeholders may confidently handle complexity and produce functional buildings that support business growth for decades by collaborating with seasoned suppliers who offer comprehensive design-build services.

Partner With DFX for Your Next Industrial Building Project

Director Steel brings over 12 years of specialized experience as a Multi-span Steel Workshop manufacturer serving construction contractors, EPC firms, and industrial facility developers worldwide. Our 40,000-square-meter production complex houses six automated H-beam welding lines, two sandwich panel systems, and comprehensive fabrication equipment supporting turnkey project delivery. From initial structural design through on-site installation guidance, our technical team collaborates with your engineering staff to optimize layouts, minimize costs, and accelerate schedules. Contact jason@bigdirector.com to discuss your requirements and receive detailed proposals backed by ISO9001 certification and CE compliance documentation.

References

1. Chen, W. & Lui, E. (2019). Handbook of Structural Steel Design: Advanced Analysis and Design Methods. CRC Press Engineering Publications.

2. Kulak, G., Fisher, J., & Struik, J. (2016). Guide to Design Criteria for Bolted and Riveted Joints in Steel Structures. American Institute of Steel Construction Technical Series.

3. Owens, G. & Cheal, B. (2018). Structural Steelwork: Design to Limit State Theory for Portal Frame Buildings. Blackwell Science Industrial Engineering Division.

4. Trahair, N., Bradford, M., Nethercot, D., & Gardner, L. (2020). The Behaviour and Design of Steel Structures to Eurocode 3. Taylor & Francis Construction Technology Group.

5. Newman, A. (2017). Metal Building Systems: Design and Specifications for Multi-Bay Industrial Structures. McGraw-Hill Professional Engineering Publications.

6. Galambos, T. & Surovek, A. (2021). Structural Stability of Steel: Concepts and Applications for Multi-Span Frameworks. John Wiley & Sons Technical Reference Series.
