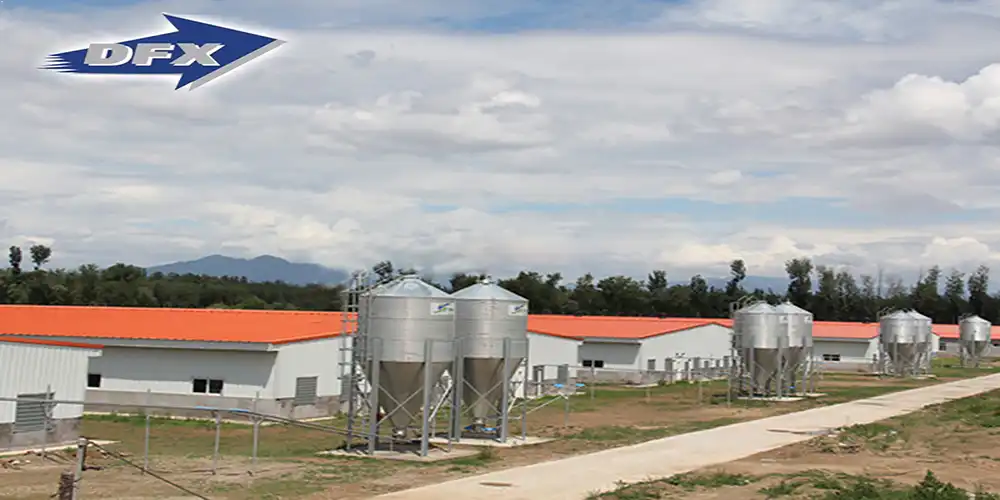

Steel Pig House Barn Ventilation: Prevent Heat Stress and Losses

Poor ventilation inside a steel pig house barn is one of the fastest ways to lose money on a swine operation. When internal temperatures climb above 27°C (80°F), pigs reduce feed intake, gain weight more slowly, and become far more susceptible to respiratory disease. In an enclosed steel livestock building, heat builds faster than in wood-framed structures because metal conducts thermal energy readily. Getting air movement right from the design stage is not optional — it directly protects your animal welfare, your production targets, and your bottom line.

Understanding Heat Stress in Steel Pig House Barns

What Heat Stress Actually Does to Pigs

Pigs go through heat stress when their bodies make more heat than they can safely let out. Iowa State University Extension research shows that finishing pigs that are exposed to temperatures above 29°C eat up to 35% less food each day. This means that they gain weight more slowly each day and have longer to go to market. When sows are stressed out by heat, they have lower conception rates, smaller litter sizes, and longer periods between weaning and estrus, all of which cost money.

Why Steel Barns Face a Specific Challenge

Steel is about 400 times better at transferring heat than wood. In the summer, a galvanized steel pig barn can act like a solar collector if it doesn't have the right insulation and ventilation. Inside temperatures can be 5–8°C higher than the outside temperature, which is well above the pigs' thermoneutral zone. This is a real risk for pig farmers who live in warm places or in cool places during the height of summer.

The Role of Humidity and Air Circulation

In a steel pig house barn, high relative humidity makes the problem a lot worse. Pigs lose most of their body heat through breathing, but breathing less quickly in humid air. Low air exchange rates make the barn environment unhealthy for both animals and building materials when ammonia-filled air from manure builds up. When circulation isn't good enough, temperature and gas levels rise in "dead zones." This creates the exact conditions that lead to long-term breathing problems and higher death rates.

Key Principles of Effective Ventilation in Steel Pig House Barns

Air Exchange Rates That Match Your Herd

In cold weather, the American Society of Agricultural and Biological Engineers (ASABE) says that ventilation rates should be at least 0.3 m³/min per 100 kg of pig body weight. During the summer, when demand is highest, these rates should be raised to 3.0 m³/min per 100 kg. Before choosing a fan or outlet design, you need to know the size of your barn, the average weight of your pigs, and the stocking density to get these numbers right.

Natural vs. Mechanical Ventilation

If you don't have power, roof vents, border curtains, and the stack effect will move air around naturally. As long as the weather is mild, it works well in large barns with short cross-ventilation distances. A negative pressure tunnel is made by exhaust fans and limited inlets in mechanical ventilation. This works much better when it is hot or wet outside. Most industrial enclosed pig farms today use a hybrid or fully mechanical longitudinal tunnel ventilation plan. Insulation and ventilation don't work against each other; they work together. Director Steel's enclosed pig barn buildings use polyurethane sandwich panels that have a thermal conductivity of about λ = 0.024 W/m·K. These panels greatly reduce the amount of heat that comes in from the outside. When you lower the amount of radiant heat that comes in through the roof and walls, your fans will work less, your energy bills will go down, and the temperature inside will stay the same during the day and night.

Integrating Insulation With Airflow Design

Insulation and ventilation are not competing systems — they work together. Polyurethane sandwich panels with a thermal conductivity of approximately λ = 0.024 W/m·K (as used in Director Steel's enclosed pig barn buildings) significantly reduce the external heat load entering the building envelope. When you lower the radiant heat gain through the roof and walls, your fans work less, energy costs drop, and the interior climate stays stable across the day/night cycle.

Designing a Steel Pig House Barn Ventilation System That Works

Vent Placement and Sizing Strategy

To make a good vent plan, you should first make a map of where possible heat pockets might be. These are usually found at the roof ridge and at the farthest end of the barn from where the air comes in. To get the warmest, most ammonia-filled air straight from the occupied area, exhaust fans should be put at or just above pig level. High inlets on the opposite wall of the pigs let fresh air flow down and over them before warming up and rising toward the exhaust fans.

When expert engineers plan the ventilation system for a steel pig barn that is closed off, these are the main things they look at:

• Fan sizing per zone: Calculate total fan capacity at static pressure (typically 25 Pa for tunnel systems) against the barn's cross-sectional area, targeting air velocities of 1.5–2.5 m/s over the pigs during summer operation.
• Inlet-to-fan ratio: Inlet area should be sized at a ratio of roughly 1.25:1 relative to fan area to maintain correct negative pressure without overworking the system.
• Ridge vent placement: For naturally ventilated barns, continuous ridge openings at 0.05 m² per meter of barn length provide adequate stack-effect extraction for moderate climates.
• Placement of ridge vents: For barns that are naturally ventilated, continuous ridge openings at 0.05 m² per meter of barn length are enough to remove stack effect in mild climates.

Prefab Steel Barn Design Advantages

These design parameters for the steel pig house barn help make sure that airflow is even, that there are no dead spots, and that the mechanical load is lower throughout the whole life cycle of the system.

ROI From Getting Ventilation Right Early

The enclosed steel buildings made by Director Steel are already designed with longitudinal ventilation as a standard feature. The galvanized steel frame and insulated roof and wall panels (which come in 50mm to 100mm PU sandwich panel configurations) make up the building envelope that keeps the inside of the building stable. All structural parts meet CE and ISO9002 quality standards, and the full range of services includes structural design, fabrication, delivery, and installation guidance. This means that ventilation is planned from the beginning, rather than being added after the building is finished.

Comparing Steel Pig House Barn Ventilation to Other Materials Steel vs. Wood Construction

In a pig barn, where there is a lot of ammonia, wood framing soaks up water and breaks down quickly. This means that wooden buildings need to be fixed up a lot, which slows down production and raises the cost of long-term maintenance. Steel doesn't rust and keeps its shape for decades, especially hot-dip galvanized steel with a zinc coating that is thicker than 600 g/m². When it comes to ventilation, the smooth, non-porous surface of steel panels makes it easier to clean between cycles. This keeps biofilm from building up in air intakes and ductwork.

Steel vs. Concrete Construction

Concrete barns offer thermal mass that moderates temperature swings, but they present real complications for ventilation installation. Cutting duct penetrations through concrete walls is labor-intensive and costly. Concrete's rough surfaces harbor bacteria and complicate biosecurity protocols. Steel pig barns are pre-drilled at the factory to exact tolerances (±2mm), so fan mounting locations and inlet cutouts are already accounted for before the building arrives on site — reducing installation time by 30–50% compared to cast-in-place concrete.

Maintenance Demands Over Lifespan

The galvanized steel frame in a Director Steel pig barn carries a design life of 30–50 years. Sandwich panels may need attention after 15–20 years depending on the local environment. Wood requires annual treatment and potential structural replacement within 10–15 years in corrosive barn conditions. Concrete can crack under freeze-thaw cycles, compromising the airtight envelope needed for controlled ventilation. Steel wins on total lifecycle cost when maintenance intervals and downtime are factored in.

Maintenance Tips to Ensure Long-Term Ventilation Performance

Routine Inspection Checklist

Consistent maintenance of your steel pig house barn keeps your ventilation system performing at the level it was designed for. A practical schedule looks like this:

• Monthly: Check fan blade condition, belt tension (on belt-driven units), and motor amperage draw; clean debris from inlet screens.
• Quarterly: Inspect duct seals and sidewall panel joints for air leaks; verify inlet opening sizes against design specifications; test thermostat and controller calibration.
• Annually: Full bearing lubrication on all fan motors; salt-spray or visual inspection of galvanized components for early corrosion signs; review air exchange rate data against current stocking density.

Staying ahead of wear problems saves both your animals and your investment in the structure.

Early Warning Signs of Ventilation Failure

Pigs panting, clustering near water drinkers, or showing increased aggression are behavioral indicators of heat stress before temperature alarms trigger. On the mechanical side, odd fan noise, lower airspeed at pig level, and rising ammonia odor near inlets all suggest the system is underperforming. Catching these signs early avoids both animal health incidents and costly emergency repairs.

Seasonal Adjustment Strategies

Summer and winter demand entirely different airflow methods. In summer, all tunnel fans run at full capacity and evaporative cooling pads (if placed) work constantly. In winter, minimum ventilation mode uses a fraction of fan capacity — usually one fan per zone — to maintain air quality without excessive heat loss. Transitioning between states should be handled by a programmable device tied to internal temperature and humidity monitors to avoid human mistakes.

Conclusion

Ventilation is not a secondary concern in steel pig house barn construction — it is a primary production variable. In this type of structure, the interaction between the building envelope, insulation system, and mechanical airflow equipment determines whether your pigs grow efficiently or struggle against heat and poor air quality. Designing the ventilation system as part of the structural plan, selecting the right materials, and committing to a consistent maintenance schedule protects both animal welfare and financial returns across the full life of the building.

FAQ

Q1: How hot is too hot inside a pig barn?

Pigs begin showing heat stress signs when temperatures reach 27°C (80°F). For farrowing sows, the critical level is slightly lower, around 25°C. Finishing pigs in the 80–120 kg range are particularly vulnerable because they generate more metabolic heat than their surface area can efficiently release. Barn temperature sensors should be placed at pig height, not at ceiling level, for accurate monitoring.

Q2: What ventilation rate should I target for a finishing barn?

The ASABE guidelines say that tunnel ventilation systems should not go faster than 3.0 m³/min per 100 kg of live pig weight in the summer. That means that a 1,000-head finishing barn with average weights of 90 kg needs a total fan capacity of about 2,700 m³/min. When you size fans, always leave 10 to 15 percent extra space than what you think you need.

Q3: Can I add ventilation to an existing steel barn?

Yes, installing fan and inlet systems after the fact is easier with pre-drilled steel plates and modular framing than by making changes to buildings made of concrete or wood. First, a structural assessment should be done to make sure the frame can support the extra weight.

Q4: How long do exhaust fans last in a pig barn environment?

In a well-kept barn, good stainless steel or zinc exhaust fans usually last 8 to 12 years. High levels of corrosive ammonia speed up the wear and tear on bearings and motor housings, so regular inspection and lubrication greatly extend service life.

Get a Custom Steel Pig House Barn Quote From DFX Director Steel

Your farm should have a pig barn that is built from the start with good airflow in mind. DFX Director Steel has been making protected livestock buildings around the world for over 12 years and is a CE-certified steel pig house barn maker. Because we do everything, from designing the structure to making the parts and helping you place them, your ventilation layout is built into the building and not put on later. Get in touch with our team at jason@bigdirector.com to talk about your project needs and get a custom price.

References

1. Iowa State University Extension and Outreach. Heat Stress in Swine. 2019.

2. American Society of Agricultural and Biological Engineers (ASABE). ASABE Standard EP270.5: Design of Ventilation Systems for Poultry and Livestock Shelters. 2012.

3. Wageningen University & Research. Effect of Housing Climate on Pig Performance and Health. 2020.

4. National Pork Board. Swine Care Handbook: Environmental Management and Ventilation. 2021.

5. Midwest Plan Service (MWPS). Mechanical Ventilating Systems for Livestock Housing. MWPS-32, 2nd Edition. 2009.

6. Zhang, Y., & Strom, J.S. Ventilation System Design for Swine Facilities. Transactions of the ASABE, 2015.
