Steel Pig House Design: Key Features for Modern Farms

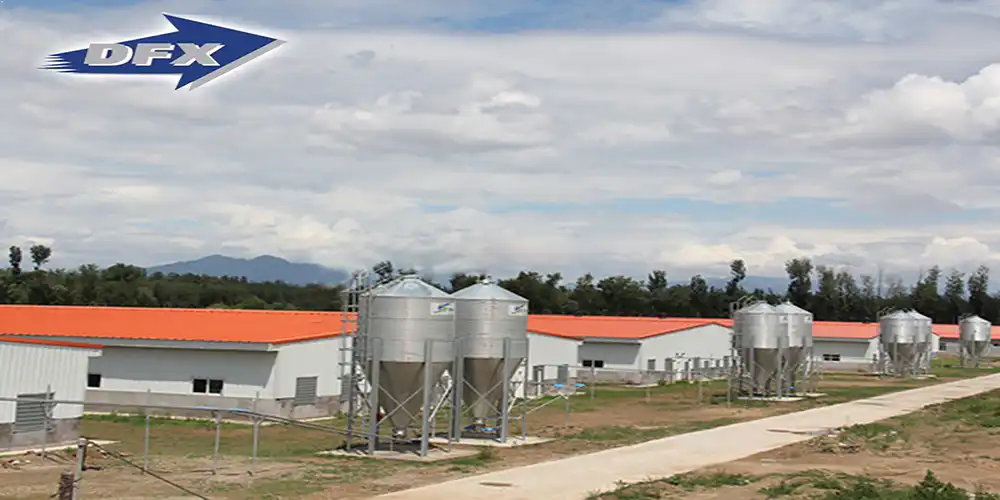

Modern pig farming demands infrastructure that balances efficiency, biosecurity, and animal welfare. A Steel Pig House addresses these challenges through its engineered framework, combining galvanised steel construction with specialised agricultural design features that support intensive livestock operations. Unlike traditional building materials prone to deterioration in corrosive farm environments, steel structures deliver resilience against ammonia exposure, moisture, and temperature fluctuations. This engineered approach reduces maintenance cycles and enhances operational performance across diverse farming scales and climates, making steel-framed housing increasingly attractive to commercial swine operations worldwide.

Understanding Steel Pig Houses: Benefits and Core Design Principles

Today's livestock farming still has problems with durability, keeping animals clean, and controlling the weather. Many of these issues can be solved by steel-based construction, which uses materials that last longer than other options and can be used with modern farm equipment.

Why Steel Outperforms Traditional Materials？

Traditional wooden buildings fall apart quickly in places with a lot of humidity and animal waste, which increases the amount of ammonia in the air. Concrete buildings are strong, but they don't keep heat in or out well and take a long time to build. A steel framework is both strong and long-lasting, and it doesn't get damaged by pests or water like wood-based designs do. Hot-dip galvanisation with zinc coatings that are thicker than 275 g/m² shields structure parts from corrosive gases. This makes buildings last longer than 25 to 30 years, compared to 10 years for wood buildings.

The enclosed form with horizontal ventilation systems makes the most of airflow while still following biosecurity rules that are necessary to keep diseases at bay. Large clear-span configurations—often 12 to 24 metres wide—are supported by galvanised steel frames. This means that there are no interior beams that get in the way of work or equipment placement. This use of space efficiently is especially helpful when combining automatic feeding systems with infrastructure for garbage management.

Core Structural Engineering Principles

Agricultural loads like suspended feed lines, water distribution systems, and ceiling-mounted ventilation units are taken into account in the design calculations. If you use Q235B or Q355B carbon steel, which has a yield strength of 235 MPa or more, your structure will stay strong even when it is being loaded and unloaded quickly. Because they are prefabricated, they can be made precisely in the factory using pre-cut and pre-drilled parts that are then bolted together on-site. This cuts down on construction time by 30 to 50 per cent compared to alternatives that use poured concrete.

Certifications like ISO9001, CE, COC, and PVOC show that the products are made well and meet international safety standards. With made-to-order production, specific farm needs can be met while costs can be predicted thanks to the manufacturing of standard parts.

Essential Design Features of Modern Steel Pig Houses

For swine housing to work well, environmental control systems, space layout, and the choice of materials must all be carefully thought out. These factors have a direct effect on the health of the animals and the farm's productivity.

Ventilation System Architecture

Managing air quality is the most important thing that can be done to stop lung illnesses and boost growth rates. There are three ways to ventilate modern buildings, depending on the climate and the size of the building. In mild areas, natural ventilation through ridge holes and sidewall inlets works well because temperature differences move the air around. Negative pressure is created by mechanical systems with vent fans. These systems pull in clean air through screened intakes while letting out dirty air.

Longitudinal ventilation systems move air evenly along the length of the building, keeping the temperature even throughout. This plan works well with tunnel house designs, where pigs move through different growth stages in separate areas. Hybrid systems use both natural and mechanical methods. They switch automatically based on the temperature outside and the humidity inside to use the least amount of energy possible while keeping conditions at their best.

Insulation and Climate Stability

Materials like polyurethane (PU), expanded polystyrene (EPS), or rock wool are used in sandwich panel systems to combine structure cladding with heat insulation. The thickness of the panel is chosen based on the temperature and the age groups of pigs that will be living in it. Farrowing units that need to keep temperatures stable around 22–24°C for piglets that are easily hurt usually ask for 75–100mm PU panels with higher R-values. Finishing barns that house grown pigs can handle a bigger range of temperatures, which means that 50 mm EPS insulation is a good compromise between cost and thermal performance.

Having the right insulation in a steel pig house lowers your heating and cooling bills and stops humidity, which helps bacteria grow. The sides of the non-porous steel and panels don't let water in, which makes cleaning easier between production runs. Biosecurity rules require high-pressure washing, but properly sealed steel structures won't be damaged by these methods. Wood, on the other hand, soaks up water and holds pathogens.

Flooring Solutions for Hygiene and Durability

Floor design has a big effect on how well trash is taken care of and how comfortable animals are. Slatted steel or concrete floors let manure fall through holes into pits below, which keeps animal areas from getting too full of ammonia. To keep hooves from getting hurt and to make sure that waste is removed effectively, slot widths and spacing need to be carefully calculated. Overlays of concrete make walking paths that are strong enough to last for decades, even after being worn down by thousands of feet.

Rubber matting in certain places, like farrowing crates, helps piglets survive by protecting them from shock and keeping them warm when they are very young. Correct drainage slopes, usually between 2% and 4%, move liquids towards collection points. This keeps water from sitting still, which attracts pests and grows pathogens. When choosing materials, you have to weigh the original cost against the frequency and cost of repairs and replacements over time.

Comparison of Steel Pig Houses with Other Construction Types

Performance Against Wooden and Concrete Alternatives

Wooden buildings are appealing because they are cheaper to build with at first, but they cost more in the long run because they need to be fixed more often, treated for pests, and replaced sooner. Swelling, bending, and structural weakness are all caused by moisture from cleaning and animal breathing. Termites and rodents eat wood, which threatens biosecurity and requires ongoing assistance with pest management.

Buildings made of concrete are very stable and don't catch fire easily. Construction schedules get pushed back a lot because of drying requirements, which delays opening the facility and making money. Because of the way concrete conducts heat, extra insulation layers are needed to reach comfort levels. This makes the walls thicker and limits the amount of room inside that can be used. Because concrete is porous, it soaks up ammonia and other waste chemicals, leaving smells that are hard to get rid of with regular cleaning.

Steel structure fixes the problems with both types of materials. Rapid assembly from prefabricated parts cuts down on project times and speeds up the return on investment. Steel's high strength-to-weight ratio lets it make longer spans with less material, which lowers the cost of the structure and the amount of foundation work that needs to be done. Galvanised surfaces don't allow microbes to grow, and when they are cleaned, they completely release any contaminants that they have received.

Prefabricated Advantages and Scalability

Factory-controlled production guarantees consistent quality and exact measurements that can't be achieved by pouring concrete on-site. When parts arrive ready to be put together, they cut down on the need for skilled labour and delays caused by bad weather. This flexibility supports phased growth strategies, in which farms gradually increase their production capacity as market demand rises, instead of investing money in facilities that are too big for their needs.

Standardised link details and component specs make it possible for farms to use successful designs at more than one spot, which speeds up the buying and servicing processes. Ordering in bulk lowers the cost per unit and makes sure that parts will work together for repairs and future changes. Bolted steel buildings can be taken apart and put back together again if farm operations change, which protects the value of the asset.

Procurement Considerations and Quality Standards

Supplier Selection Criteria

When making sourcing choices, companies that can show provable quality systems and related farm-building experience should be given the most weight. If a company has ISO9001 certification, it means that it has set quality management methods for design, production, and delivery. CE marking shows that the product meets European standards for health, safety, and the environment. COC (Certificate of Conformity) and PVOC (Pre-Export Verification of Conformity) show that the product meets the needs of certain trade markets.

Look at the profiles of suppliers who have worked on projects of a similar size, and ask similar farming operations for client references. Manufacturers who offer full services, from designing structures to helping with installation, make planning easier and close any responsibility gaps. Their engineering teams should be able to give you load estimates, foundation details, and building drawings that are specific to your spot and the tools you need.

Lead Times and Bulk Order Capabilities

For made-to-order production to work, delivery schedules for buildings need to be coordinated with schedules for farm development. Depending on the complexity of the project and the length of the current production queue, the average manufacturing cycle lasts between 6 and 10 weeks. When a supplier has relationships with more than one fabrication facility, they can often meet tight deadlines or handle large orders at the same time at multiple farm sites.

Make it clear what "installation guidance" in service agreements really means. Some suppliers of Steel Pig House products offer detailed assembly guides and technical support over the phone, while others offer on-site supervisors during the most important parts of the installation process. If you understand this scope, you can avoid costly delays caused by mistakes in building or wrong interpretation of specs.

Transparent Pricing Structures

Ask for quotes that break down the costs into framework, cladding systems, doors, ventilation parts, and shipping. Because everything is clear, it's possible to make accurate budget predictions and have value engineering conversations about how to improve features without hurting performance. Specifications for insulation have a big effect on prices. For example, switching from 50mm to 100mm panels could raise prices by 15-20% but save a lot of energy over the life of the building.

Adding automated equipment makes things more complicated and needs special electrical and structure support. Talk about these needs during the first design meetings to get accurate prices instead of having to deal with change orders during building. There are a lot of different warranty terms. Look for coverage that lasts at least 10 years for basic parts and 3–5 years for cladding and extras, as well as clear instructions on how to file a claim.

Future-Proofing Your Farm with Advanced Features

Automation and Smart Environmental Controls

Modern pig farms are using more and more automated systems, which cut down on the need for workers and improve the consistency of production. Automated drop-feeding systems hanging from steel rafters deliver exact amounts of feed at set times, improving feed conversion rates and getting rid of the need for manual feeding. The design of the structural steel has to be able to handle these loads—which are usually several hundred kilograms per linear metre—without deformation that could throw off the delivery systems.

Temperature sensors, humidity monitors, and automatic air management are all part of climate control systems. These controls change fan speeds and openings for air flow on the fly, keeping the goal conditions stable even if the weather changes outside. With remote monitoring, farm managers can keep an eye on things and get alerts on their phones when equipment breaks down or the environment changes, so they can act quickly before the animals' well-being is compromised.

Energy Efficiency and Sustainability Integration

Farms are moving towards using renewable energy because of rising energy costs and rules about the environment. Steel buildings can easily fit solar panel stacks on the roof, and the structure is made to support extra weight from photovoltaic systems. The best way to use solar energy is to choose the right direction and roof pitch when the building is first planned so that expensive upgrades aren't needed later on.

Using stable temperatures in the ground, geothermal heat exchange systems built into building supports make heating and cooling more efficient. In all temperature control situations, insulated panel systems with high R-values use less energy, which lowers running costs and meets stricter environmental performance standards.

Modular Expansion Capability

Farms often grow in stages that depend on the market and the amount of money that is available. The modular nature of steel construction makes this phased development possible by using standard bay widths that fit together easily. Adding production capacity doesn't affect current operations too much because new sections can be bolted to existing end walls or sidewalls without having to tear down infrastructure that is already in use.

This flexibility saves initial investments by making sure that buildings are still useful as business grows. Including base provisions and utility rough-ins in the initial design to account for future growth cuts down on later expansion costs by a large amount compared to retrofitting buildings that weren't prepared first.

Conclusion

Steel-framed livestock housing has real benefits in terms of longevity, biosecurity, and operating efficiency, all of which are important for modern pig production. A well-designed steel pig house combines galvanised structure stability, modern ventilation engineering, and thermal performance to create conditions that support animal welfare while reducing costs throughout the building’s service life. A successful project outcome depends on carefully choosing suppliers and focusing on quality certifications and full service capabilities. As the needs for automation and sustainability change, farms can adapt their steel buildings to meet these requirements without having to replace existing infrastructure.

FAQ

1. How does steel construction resist corrosive farm environments?

When you hot-dip galvanise steel, a metallurgical zinc bond forms that protects it from the ammonia and hydrogen sulphide gases that are common in animal farms. 600 g/m² zinc coatings on column bases and other high-exposure areas protect against cathodic breakdown, where the zinc layer corrodes faster than the steel below it. This process makes the structure last 25 to 30 years longer with less upkeep than painted or unpainted options that need to be refinished often.

2. Can buildings support heavy automated equipment?

When structural engineers do their math, they take into account loads that are suspended from automated feed systems, water lines, and ventilation equipment that is mounted on the ceiling. When the right steel types and member sizes are used, there are no worries about deflection that could cause precise equipment to become out of alignment. Talking about automation plans during the planning phase makes sure that there is enough support without having to make expensive changes later.

3. What customisation options accommodate different farm scales?

The length, width, and space between bays of a building can be changed to fit the needs of the production capacity and the site. The amount of insulation, the complexity of the air system, and the way the doors are set up can all be changed to fit the temperature and the way the building is managed. Manufacturers with experience in agricultural projects make these choices based on the number of pigs, the stage of growth they are in, and the environmental conditions in the area.

4. How quickly can construction be completed compared to traditional methods?

Building with prefabricated steel is 30–50% faster than building with concrete. Factory-made parts come already cut and drilled, so all that needs to be done on-site is bolting them together. This speed lowers the cost of financing, speeds up the process of making money, and lowers the risk of disease exposure during construction near farms that are already in use.

Partner with DFX for Your Steel Pig House Project

With more than 12 years of experience, DFX has been making farm steel structures that meet the strict needs of modern livestock businesses. Our 40,000-square-metre factory has six automatic welded H-beam lines and high-tech panel production equipment. This lets us provide full total solutions, from designing the structure to helping with the installation. We are an ISO9001-certified Steel Pig House supplier, and our high-quality standards are backed up by CE, COC, and PVOC certifications that are accepted all over the world.

Our engineering team works closely with agricultural project managers to make sure that the building specifications are best for your climate, production scale, and automation needs. Made-to-order making lets you make exact changes without affecting delivery times. Email our farm building experts at jason@bigdirector.com to talk about your swine housing project needs and get thorough technical plans that are made to fit your business's goals.
