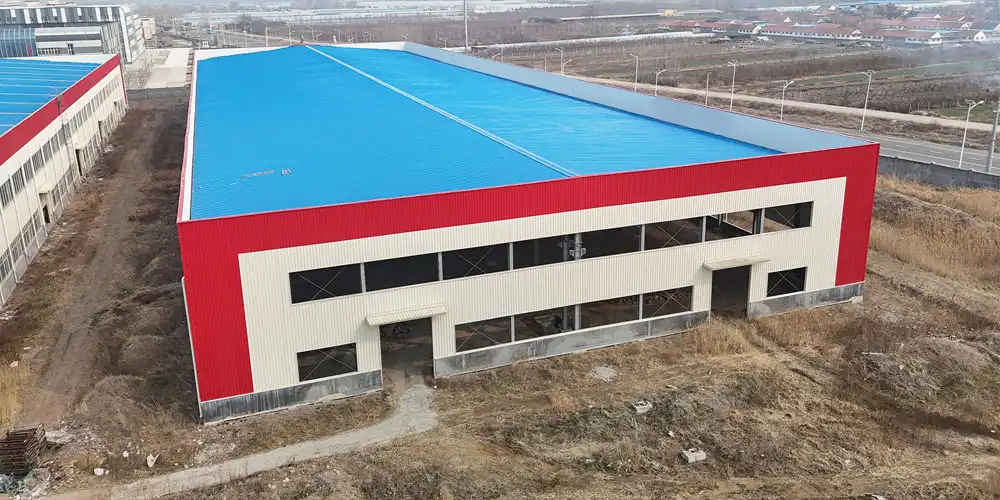

How to Design a Chemical Storage Steel Warehouse Safely?

Designing a chemical storage steel warehouse requires balancing structural integrity with specialized safety protocols to protect personnel, inventory, and the surrounding environment. These facilities must incorporate fire-resistant construction, corrosion-resistant materials, advanced ventilation systems, and segregated storage zones tailored to the chemical classes stored. Unlike standard warehouses, chemical storage structures demand compliance with OSHA, NFPA, and EPA regulations, integrating explosion-relief panels, spill containment systems, and proper electrical grounding to mitigate catastrophic risks associated with flammable, reactive, or toxic substances.

Understanding the Challenges of Chemical Storage Steel Warehouses

There are specific operational risks that chemical storage steel warehouse sites face that need engineered answers from the beginning of the planning process. When you store dangerous things like acids, solvents, oxidizers, and flammable liquids, you run the risk of fire, rust, and environmental pollution that you don't run when you store normal things.

Managing Fire and Explosion Risks

When keeping drugs, fire is still the biggest worry. Under certain conditions, a lot of industrial solvents, petroleum products, and reactive substances can catch fire and quickly spread, which is also known as deflagration. Fire-rated steel members with intumescent coatings must be included in the structure plan so that the building can withstand a fire for up to two hours. Explosion-relief panels should also be built into the walls and top so that the building's pressure can escape during a deflagration. This will keep the main frame from falling apart completely.

Addressing Corrosion and Material Degradation

Acids, alkalis, and chlorinated compounds release corrosive vapors that attack bare steel surfaces and cause structures to fail early. We've seen projects where bad coating systems needed expensive repairs less than three years after they were put in use. Protective measures like hot-dip galvanization (minimum 600 g/m² zinc coating) or multi-layer epoxy phenolic barrier coatings are needed to make things last longer than 20 years, especially in places with a lot of humidity or changing temperatures.

Ensuring Proper Ventilation and Air Quality

When there isn't enough airflow, dangerous fumes can build up, making the air toxic and raising the risk of an explosion. The chemicals that are kept must be taken into account when designing mechanical ventilation systems. The air exchange rates must be just right to keep vapor amounts well below the Lower Explosive Limits (LEL). Ridge vents, forced-air exhaust fans with motors that can't explode, and fresh air intakes placed to create cross-flow patterns that move contaminants away from work areas should all be part of the design.

Optimizing Storage Layout and Capacity

Saving space can't come at the cost of safety. Chemicals must be separated by their compatibility groups. For example, oxidizers must be kept away from flammables, acids must be kept away from bases, and water-reactive substances must be kept away from sources of moisture. This way of zoning needs careful layout planning that combines the number of storage spaces with safe entry corridors, room for forklifts to move around, and escape routes in case of an emergency. The building's design has to be able to handle big loads from drum pallets and Intermediate Bulk Containers (IBCs), while still leaving enough space for people to move the materials easily.

Core Principles of Safe Chemical Storage in Steel Warehouse Design

Following well-known industry standards and using tried-and-true engineering methods is the first step in creating a safe and legal chemical storage steel warehouse facility. Every design choice, from the ground to the roof, is based on these concepts.

Compliance with Regulatory Standards

Minimum safety standards are set by OSHA rules (29 CFR 1910.106), NFPA codes (especially NFPA 30 for flammable liquids), and local fire marshal rules. Chapter 4 of the International Building Code (IBC) lists the building standards based on the type of usage, which is usually H-2 or H-3 for chemical storage. Compliance is required because it saves your insurance, keeps your business from shutting down, and keeps you from being sued. If you work with providers who know about these rules, your building will pass checks the first time they come.

Fire Prevention and Suppression Systems

Using non-combustible steel frames, mineral wool-insulated walls, and fire-rated doors are the first steps in fire prevention. Active suppression usually uses sprinkler systems that are made to meet the density needs of different chemical types. These systems can range from 0.15 to 0.60 gpm/ft², based on the danger of the product. For putting out flammable liquid fires, foam suppression systems work better than others. The building's design has to take into account the weight of the sprinkler pipes and include places to put monitoring equipment like heat, smoke, and certain gas monitors.

Ventilation Design Tailored to Chemical Hazards

Chemical-specific calculations are needed for ventilation design. More air has to flow through volatile organic compounds than through solid fertilizers when they are being stored. We suggest hiring mechanical engineers who can do distribution modeling to figure out how much exhaust capacity is needed. A chemical storage steel warehouse requires a steel frame that needs to be strong enough to hold up exhaust fans on the roof, have sealed holes for pipes, and be able to fit makeup air units. For low-risk storage, louvered screens that let air flow work, but mechanical methods are the only way to reliably handle high-risk chemicals.

Structural Durability and Load Considerations

When chemicals are stored, stacked drums and IBC totes cause heavy point loads that often go over 500 psf in some areas. ASCE 7 guidelines say that the H-beam main frame has to be designed to handle these loads as well as snow, wind, and earthquake forces. Galvanized C/Z purlins protect against corrosion and hold up roof and wall cladding systems. The bracing system makes sure that the structure is stable on the sides during lifting operations and natural events. Modular prefabricated steel construction lets the building grow in the future while keeping the building's structure strong.

Step-by-Step Guide to Designing a Chemical Storage Steel Warehouse Safely

To complete a chemical storage steel warehouse project successfully, you need to follow a plan that takes into account technical, legal, and operational needs in the right order.

Phase 1: Risk Assessment and Chemical Classification

Start by making a list of all the chemicals that will be stored. Write down their amounts, physical states, classifications of danger, and compatibility groups. Every design choice after this is based on this inventory. Hire safety experts to do Hazard and Operability Studies (HAZOP) that show how things could go wrong. Setback distances and containment requirements are affected by things like how close the area is to occupied buildings, environmentally sensitive areas, and emergency response options. Documentation from this step is what permit applications are based on.

Phase 2: Layout Planning and Zoning Strategy

Chemical compatibility data needs to be turned into physical separation zones within the warehouse's footprint. Set aside areas with physical barriers or minimum distances between flammables, oxidizers, corrosives, and toxics. Put the most dangerous things as far away from people and property lines as possible. Plan traffic flows so that forklifts don't have to go through as many high-risk areas as possible. Include spill reaction stations with the right tools to limit the spill. This plan becomes the spatial program that decides the size of the building and the distance between structural bays, which is usually between 20 and 30 feet for the best column placement.

Phase 3: Material Selection and Structural Engineering

Choose steel types and coatings that will protect against corrosion that are right for the area. For the main frame, high-strength low-alloy steels like Q355B or ASTM A572 Gr. 50 have great strength-to-weight ratios. Hot-dip galvanizing or powder treatment is good for secondary members like purlins and girts. Insulated sandwich panels with chemically resistant faces should be used for wall and roof panels. Often, special polymer coatings are needed instead of standard polyester finishes. The design of the foundation must include features that keep spills from spreading, like curved edges or dropped slabs that catch leaks and keep dirt and groundwater from becoming contaminated.

Phase 4: Installing Safety Systems

Coordinate the installation of fire suppression pipes, ventilation ductwork, electrical conduit for explosion-proof fixtures, and monitoring equipment while the building is being built. To keep fire ratings and vapor barriers, all holes and openings in the steel structure must be properly sealed. All steel supports should be grounded to get rid of static electricity that could set flammable vapors on fire. Put in emergency lights, exit signs that are lit up, and alarm systems that are linked to automatic reduction. During this phase, quality control stops expensive repairs. Before taking work, we use ultrasonic testing to check the welds and dry film gauges to check the thickness of the coating.

Phase 5: Maintenance Planning and Safety Audits

Complete a full set of performance tests before opening the building. Check the ventilation rates by measuring the flow, make sure the suppression system covers the whole area, and make sure the monitoring equipment is calibrated. Set up upkeep plans for important safety equipment, like checking the sprinklers every month, the ventilation system every three months, and the building itself once a year. Teach the people who work at the facility how to handle emergencies that involve stored chemicals. Every two years, have a third party do a safety check to find new risks that come up as your processes change. Proper maintenance protects the investment and keeps it in line with regulations, keeping workers safe.

Comparative Analysis: Chemical Storage Steel Warehouses vs. Other Storage Options

Before making a big purchase, procurement teams often look at a number of chemical storage steel warehouse options. Figuring out the comparative benefits helps make investing choices more logical.

Steel Warehouses vs. Plastic Storage Solutions

For small businesses, plastic storage boxes and polyethylene bins are portable and don't rust, but they can't compare to engineered steel buildings when it comes to fire safety and strength. Metallic materials like steel stay strong during heat events while plastics melt and add fuel to fires. Steel warehouses are the only real option for businesses that need to store more than 1,000 gallons of flammable liquids or need separate areas for chemicals that don't mix. With the modular prefabricated method, steel buildings can grow from 2,000 to 20,000 square feet, but plastic buildings can only hold cabinets-sized items.

Steel Warehouses vs. Chemical Storage Containers

Temporary needs or satellite areas can be met by portable chemical storage containers. This gives building sites and holiday businesses more options. But they aren't connected to fixed fire suppression systems, they don't offer much in the way of temperature control, and they cost a lot to rent for long periods of time. A purpose-built steel warehouse has lower lifecycle costs for long-term operations, better environmental control, and custom layouts that make work flow more smoothly. The money spent on engineered steel building is returned in the form of lower insurance rates, lower maintenance costs, and higher operating output.

Evaluating Steel Warehouse Models and Suppliers

Not every steel building provider is as knowledgeable about how to store chemicals. Manufacturers should be judged on how much experience they have with facilities that handle dangerous materials. This can be done by checking project references and certifications. Quality management systems like ISO9001 and CE marking show that a company is committed to using organized ways to make things. Having a single point of responsibility for all of a supplier's services—including technical calculations, fabrication, shipping planning, and erection guidance—makes project management easier. Before giving contracts, make sure the technical knowledge of the bidders is checked by asking for written proof of coating specs, weld processes, and structure estimates.

Conclusion

To create safe chemical storage steel warehouses, you need to know a lot about structural engineering, handling dangerous materials, and following the rules. Putting money into good design—including fire-resistant materials, corrosion protection, engineered ventilation, and separate layouts—avoids disasters and makes sure that operations run smoothly for a long time. Teams in charge of buying things should give more weight to providers that offer full technical support, quality control for their products, and chemical storage knowledge that can be seen in certifications and finished projects. By using systematic design methods and picking skilled manufacturing partners, your company can build buildings that keep workers safe, meet government standards, and keep the business running for decades.

FAQ

1. What chemicals are safe to store in steel warehouses?

With the right planning, chemical storage steel warehouses can hold most industrial chemicals, such as flammable liquids, corrosives, oxidizers, and poisons. The most important thing to think about is how to fit the chemical qualities to the protective coverings and containment features. Flammable solvents need electrical equipment that can't explode and systems that put out fires. For structural steel, acids and alkalis need special epoxy phenolic finishes. Things that react with water need places that keep the humidity low. Chemicals that don't mix must be physically separated in the design of the facility.

2. How often should safety inspections occur?

Every month, checks should be made to make sure that the fire suppression system works, the ventilation system works, and the containment is still intact. Every three months, building conditions are checked, such as how well the drainage system is working and how well the door seals are working. Third-party audits done once a year by certified safety professionals give full reports on how well regulations are being followed, and procedures are updated as standards change. After any chemical release, structural damage, or system malfunction, inspections must be done right away.

3. What ventilation standards apply to chemical storage?

OSHA requires ventilation systems that keep the amount of certain chemicals in the air below the Permissible Exposure Limits (PEL). NFPA 30 says that places that store explosive liquids must have at least one cubic foot of air flow per square foot of floor space. According to the International Fire Code, buildings must have continuous mechanical ventilation while people are inside, with exhaust intake points close to the floor where vapors tend to gather. The actual rules depend on how volatile the chemicals being stored are, how big the storage room is, and how the local government interprets them.
