Military Aircraft Steel Hangar

Military Aircraft Steel Hangar - Professional Steel Structure Solutions

Getting a Military Aircraft Steel Hangar is like spending money on mission-critical equipment that keeps valuable aircraft assets safe. Our specially designed steel buildings have the huge, clear-span spaces and long-lasting quality that military operations need. Because they are made to survive harsh conditions, these hangars keep your planes safe while keeping them ready to go. Qingdao Director Steel Structure has been in business for more than 12 years and provides engineered solutions that meet the strict needs of military flight sites.

Unmatched Engineering for Defense Applications

Your military operations demand structures that perform under pressure. Our steel hangars feature advanced portal frame designs that create obstacle-free interiors spanning 30 to 100+ meters. This column-free environment allows unrestricted aircraft movement and maintenance operations.

A572 Grade 50 and EN S355JR standards are used for the skeletal framework's high-tensile steel materials. Extreme loads don't affect the structural stability of these materials, which have great strength-to-weight ratios. Higher wind resistance ratings mean that your hangar will be able to handle typhoons and hurricane-force conditions that are common at key coastal sites.

Earthquake-prone areas can get extra safety from seismic engineering for Zone 4 uses. Truss structure evenly spreads weight and allows for hanging equipment like 5–10-ton overhead bridge cranes.

Advanced Protection Systems

Military flight needs special care for the earth. Heavy-duty anticorrosion systems built for tough working conditions are built into our hangar designs. Hot-dip galvanizing with at least 600g/m² of covering protects against salt spray and chemicals for a long time.

We use multi-layer finishing methods to make things last longer. When you shot blast to the Sa2.5 grade, you get areas ready for polyurethane topcoats and epoxy zinc-rich bases. This mix makes a barrier system with a dry film layer of more than 120μm that keeps jet fuel, hydraulic fluids, and natural pollutants out.

Thermal efficiency is still very important for maintaining sensitive electronics. R-values higher than 20 can be achieved with sandwich panels that are fully integrated and have rock wool or polyurethane cores. This protection keeps the inside of the ship at a steady temperature and lowers the noise from engine start-ups and ground support equipment.

Specifications That Meet Military Standards

Integrated Support Systems

Modern military aircraft require sophisticated support infrastructure. Our Military Aircraft Steel Hangar designs accommodate advanced fire suppression systems compliant with NFPA 409 standards. Structural calculations include dead loads for high-expansion foam generators, deluge piping, and water monitors.

Large-span door systems integrate seamlessly with the structural framework. Sliding or vertical lifting configurations provide clear openings sized for your specific aircraft. Door systems feature high-performance sealing to maintain interior climate control and security protocols.

Electrical and utility integration accommodates complex maintenance equipment. Structured pathways for compressed air, hydraulic power units, and data networks support modern maintenance operations. Emergency power connections ensure critical systems remain operational during power outages.

Quality Assurance and Compliance

Every project has to follow strict quality control rules that were made for the military. Verification of raw materials includes Mill Test Reports that prove the chemical make-up and yield strength requirements. Ultrasonic and magnetic particle inspection are non-destructive tests that make sure the integrity of welds at key links.

Laser measurement tools are used for dimension checks to make sure that bolt holes are lined up correctly and that pre-assembly angle is correct. This accuracy guarantees quick assembly on-site, which is very important for meeting military project deadlines. When new plans are needed, full-scale load testing compares the performance of the structure to computer models.

Our factory, which is ISO 9001 certified, follows strict quality control methods. Getting a CE certificate means that you meet foreign standards. More certificates, like COC and PVOC, make sure that regulations are followed in all global areas.

Modular Design for Future Expansion

Military fleet requirements evolve over time. Our portal frame designs incorporate modular expansion capabilities. End walls utilize non-load bearing configurations that allow lengthwise bay additions with minimal operational disruption.

Foundation systems accommodate future modifications. Deep reinforced concrete footings or pile foundations prevent differential settlement while providing anchor points for expansion connections. Geotechnical analysis ensures proper load distribution for heavy-lift aircraft operations.

Utility infrastructure includes provisions for future capacity increases. Oversized conduit systems and junction boxes accommodate additional electrical loads. HVAC systems design includes spare capacity for expanded square footage.

Contact Us

Our comprehensive service scope covers every project phase. Structural calculations utilize advanced software to optimize material usage while meeting safety factors. Customized design services ensure your Military Aircraft Steel Hangar meets specific operational requirements.

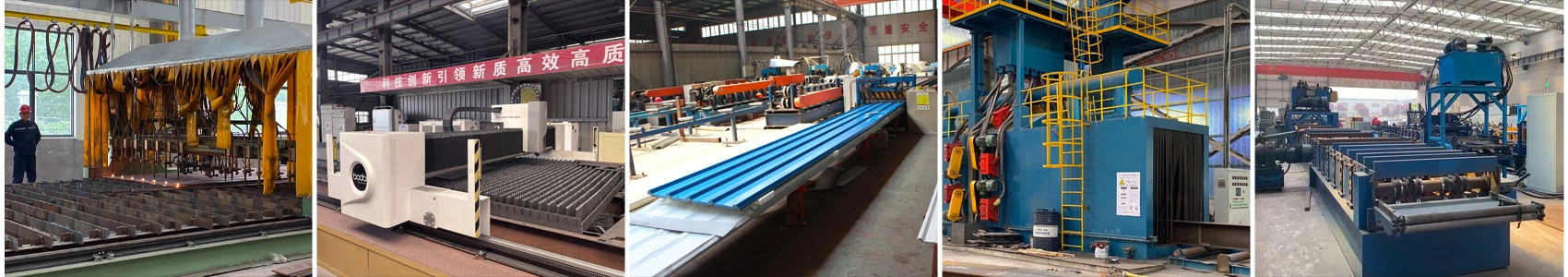

Fabrication takes place in our 40,000 square meter facility using automated welding lines and precision cutting equipment. Installation guidance from our technical team ensures proper assembly and commissioning. Project management coordinates delivery schedules with construction timelines.

Ready to protect your aviation assets with professional steel structure solutions? Contact our engineering team at jason@bigdirector.com to discuss your specific requirements. We'll provide detailed specifications and project timelines tailored to your mission needs.
