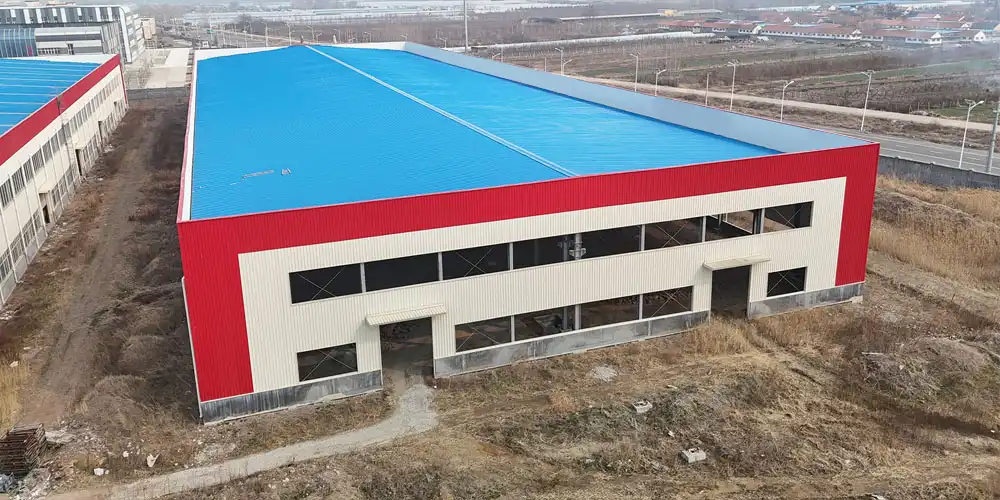

When you're planning an automotive maintenance facility, choosing the right building structure can make or break your operational efficiency. An Auto Repair Steel Garage is a specialized pre-engineered metal building system designed specifically for the automotive maintenance and collision repair industry. Unlike traditional construction, these garages utilize structural steel frameworks—typically light H-section or square tube steel frames with galvanized purlins—to create column-free interiors essential for maneuvering vehicles and positioning hydraulic lifts. The compact steel-framed building with an enclosed structure solves critical industry pain points, including fire safety during welding operations, structural integrity for overhead equipment, and resistance to automotive fluids and chemicals that would degrade other materials over time.

Understanding Steel Garages for Auto Repair: Structure and Layout Essentials

Core Structural Components

High-tensile structural steel, usually ASTM A992 or A572 Grade 50 for the main frame, is what holds any auto repair steel garage for auto work together. The building envelope and the operating tools inside need to be able to hold their own weight. These materials do that. The secondary framing is made of cold-formed galvanized steel that meets ASTM A653 standards. The roof and wall panels have Galvalume coatings, which are made of an aluminum-zinc alloy that is better at resisting corrosion from exhaust fumes and humidity than standard galvanized finishes.

The clear span is what makes these buildings unique. Modern engineering lets widths go over 100 feet without having to use internal beams. This makes the best use of bay space and improves the speed of workflow. This open layout lets many vehicle lifts, alignment tools, and diagnostic stations work together without the space problems that come with regular buildings.

Layout Optimization for Workflow Efficiency

Space planning is what makes the difference between car repair shops that do well and ones that don't. Layout-wise, your Auto Repair Steel Garage should be split into three useful areas: work bays for actual work, areas for parts storage and inventory, and areas for customer service or office work. For standard vehicles, work bays need to have enough clearance, which is usually 20 feet for eave heights. For fleet maintenance involving semi-trucks or buses, higher configurations are needed.

Putting ceiling doors in the right place can improve both productivity and energy economy. For high-volume businesses, drive-throughs work well, while single-access designs are better for smaller specialty shops. Positioning office areas along the front slope is helpful because it creates a gap between customer areas and repair areas that are currently being worked on. This also makes it easier to keep an eye on things.

Critical Load Considerations

During the planning process, correct load calculations are needed to make sure that the structure is stable. The permanent weight of the building, such as the steel frame, roofing panels, insulation, and fixed equipment, is called the dead load. Live loads are temporary weights like people, tools that can be moved, and repair work being done on the roof.

Environmental loads need to be carefully looked at based on where they are. The United States has a wide range of wind loads, from hurricane-force conditions along the coast to moderate exposure in the middle of the country. In the north, where it snows a lot, snow loads can be problematic. More than 50 pounds of snow can be built per square foot. In places where earthquakes are common, seismic loads are important and need special link features and bracing systems.

Professional engineering makes sure that foreign standards, such as Eurocode and ASCE 7 (Minimum Design Loads for Buildings and Other Structures), are followed. This level of technical detail protects your property and makes sure that your insurance will still cover the building for as long as it is used.

Comparing Steel Garages with Other Materials for Auto Repair Use

Steel Versus Wood Construction

Traditional wood-framed buildings are still commonly used for small-scale construction, but they aren't very good for use in cars. Repair shops are bad places for wood because it breaks down quickly when it comes in contact with water, automotive fluids, and chemicals. Structural steel doesn't change shape and doesn't absorb water, so it doesn't bend, rot, or get damaged by insects like wooden buildings do.

Lifecycle cost studies always show that an auto repair steel garage is the best choice. Even though the original prices of the materials may seem about the same, the upkeep needed for wood—regular painting, replacing broken parts, and pest control—accumulates significantly over a 20- to 30-year operational time. Steel structures don't need much maintenance besides regular checks and touch-ups of the coatings on the outside.

One more important difference is fire safety. Steel framing doesn't catch fire, so it can meet strict NFPA fire codes about dangerous paint fumes and welding operations without any extra fireproofing. Wood needs a lot of work to make it less likely to catch fire, and it's still more dangerous in places with open flames and flammable materials.

Steel Versus Aluminum Alternatives

Aluminum has some benefits, like being naturally resistant to corrosion and being lighter, but steel is still the most common choice for structure uses that need to hold a lot of weight. The comparison of strength to weight shows that steel is better at holding high cranes, engine hoists, and heavy machinery that is attached to the building frame.

The way these materials handle heat is very different from one another. Steel structures work better with insulation systems because they come with standard holes for attaching vinyl-backed fiberglass or rigid foam insulation, which makes better thermal barriers. Because aluminum conducts heat more quickly than other materials, it needs more advanced insulation methods to be as energy-efficient.

When it comes to cost, steel is usually the best choice for houses bigger than 2,000 square feet. Aluminum still has much higher material costs, and fewer fabricators have the specialized welding skills needed for structural aluminum parts. This could make lead times longer and source choices smaller.

Prefabricated Versus Custom Construction

Prefabricated auto repair steel garage systems are very helpful for companies that want to get things done quickly and on budget. Standardized parts are made in controlled factory settings by manufacturers to ensure uniform quality and accurate measurements. Production cycles are still short—often just four to eight weeks from order to delivery—so projects can be started quickly.

Custom-engineered solutions are best for businesses that need to work with existing structures, deal with odd site conditions, or handle heavy loads on equipment that aren't normally supported. Customization of the design allows for specific operating needs, but it comes with longer technical timelines and higher costs.

When planning for future growth, scalability is important. Most prefabricated systems have end walls that can be expanded to make room for more bays without stopping activities. This modular approach works better for businesses that are growing than custom construction, which might need a lot of demolition and rebuilding when the need for more space comes up.

Materials and Insulation Options for Steel Auto Repair Garages

Steel Grade Selection

The choice of materials has a direct effect on how long the Auto Repair Steel Garage will last and how much maintenance it will need over its lifetime. Through zinc coatings, galvanized steel parts offer basic rust protection that works well in mild exposure situations. Weathering steel (COR-TEN) takes on a stable rust-like look that protects the material underneath and, in some regions, gets rid of the need to paint.

Powder-coated finishes give you more choices for how they look and are better at resisting chemicals. The electrostatic application method makes even coatings that are better able to handle solvents, degreasers, and auto fluids than regular paint systems. Even in places with a lot of UV light, colors stay true very well, so they look professional with little upkeep.

The place where something was made affects both quality and price. Our factories in China are ISO 8996 certified and CE compliant, which means that our goods meet international quality standards. We also offer reasonable pricing that helps projects stay within their budgets without sacrificing structural performance.

Insulation Strategies

The right insulation standard is very important for both energy economy and worker comfort. Spray foam insulation has the highest R-value per inch and effectively blocks air flow, lowering heating and cooling costs by 30 to 50 percent compared to buildings that aren't insulated. The seamless application gets rid of thermal bridging and condensation problems that hurt inventory and make working conditions uncomfortable.

When placed correctly with vapor barriers, fiberglass batt insulation provides good heat performance at a low cost. Vinyl-backed options do two things: they insulate and keep condensation from getting on customer cars, which is a regular problem in badly built buildings. Rigid foam board insulation is best for uses that need to stick to certain thickness limits or need to keep out moisture at all costs.

In cities or mixed-use projects, acoustic sound is important. Insulation systems stop noise from traveling, so the sounds of air tools, engines, and metal work stay inside the building. Taking this into account saves the properties next door and may be necessary to get permits in noise-sensitive places.

Roofing and Door Systems

The design of the roof affects both how it looks and how well it works. While meeting municipal design standards for a traditional look, gable configurations make it easier for water to drain and snow to melt. Curved roof shapes look more modern and use less material because their arches work more efficiently. This could mean lower costs for longer spans.

The choice of door strikes a mix between ease of use, safety, and energy efficiency. Sectional overhead doors are still the standard in the business, and they can be made with insulation to keep heat in during the winter. High-speed moving doors work well in places with a lot of foot traffic because they keep the door closed for as little time as possible while vehicles enter and leave.

For fire escape and security reasons, personnel doors need to have the right ratings. Commercial-grade hardware on insulated steel doors makes them last even when they're being used a lot, and they keep the thermal envelope intact. Automatic closers and panic hardware make sure that business buildings follow life safety rules.

Conclusion

Auto Repair Steel Garage units for fixing cars are tried-and-true options that combine good structure, good operation, and good value for money. Steel construction is better suited to the needs of car repair settings than other materials because it has better clear span, load-bearing capacity, and corrosion protection. Layout optimization, proper load analysis, and material selection must all be done with great care to make sure that facilities meet both current operational needs and needs for future growth. Working with skilled manufacturers that offer full services, from planning to installation support, speeds up the project process and saves the value of the investment over time. The case studies show that steel building technology can be used successfully in a range of climates and at different levels of operation. This proves that it can be tailored to different business needs.

FAQ

1. Can steel garages support overhead engine cranes and heavy equipment?

Yes, but this feature needs to be analyzed by engineers during the initial planning phase of your Auto Repair Steel Garage. Certain types of extra weight, like five-ton bridge cranes or monorail systems, can be supported by rigid frames. The important thing is to figure out these loads before starting to build, making sure that the main structural parts can hold enough weight and that the loads are safely transferred to the supports through the right connections. Adding crane systems to buildings that are already there is harder and costs more than adding them when the buildings were first designed.

2. How does insulation prevent condensation problems in auto repair environments?

When warm air with a lot of wetness hits cold surfaces, droplets of water form that land on cars and other equipment. High R-value insulation, like vinyl-backed fiberglass or closed-cell spray foam, keeps the surface temperatures inside above the dew point, which stops mist from forming. On the warm side of insulation assemblies, proper vapor barriers stop moisture from moving into wall and roof cavities, where it damages structural parts over time through hidden condensation.

3. What kind of base do car lifts need?

For the steel building shell, perimeter footings are needed to support column loads. For vehicle lift anchorage, however, separate reinforced concrete slabs are needed. Standard requirements call for a six-inch-thickness concrete made of 4000 psi with the right amount of rebar for support. Lift makers give exact instructions on how to install base bolts and how deep they should go into the ground. The slab design can handle heavy loads from raised vehicles—often more than 10,000 pounds per post—without cracking or sinking, which would make the lift less safe and less effective.

Partner with DFX for Your Steel Auto Repair Garage Project

Picking the right auto repair steel garage supplier will affect how well your business does for many years to come. DFX (Qingdao Director Steel Structure Co., Ltd.) has been specializing in pre-engineered steel buildings for more than 12 years and has modern manufacturing facilities spanning 40,000 square meters. They are also certified by ISO 8996, CE, COC, and PVOC. Our full range of services includes standard design, precise fabrication, safe packaging, and detailed installation drawings. This makes sure that the whole project goes smoothly from the idea stage to the finished product. We can make more than 20,000 tons of structural steel every year, and our short production cycles will help your project move along faster. We are ready to support your idea with reliable, cost-effective solutions that meet international standards. Contact our team at jason@bigdirector.com to talk about your specific needs and find out how working with a well-known steel garage maker can change the way you service cars and protect your investment through high quality products and reliable support after the sale.
