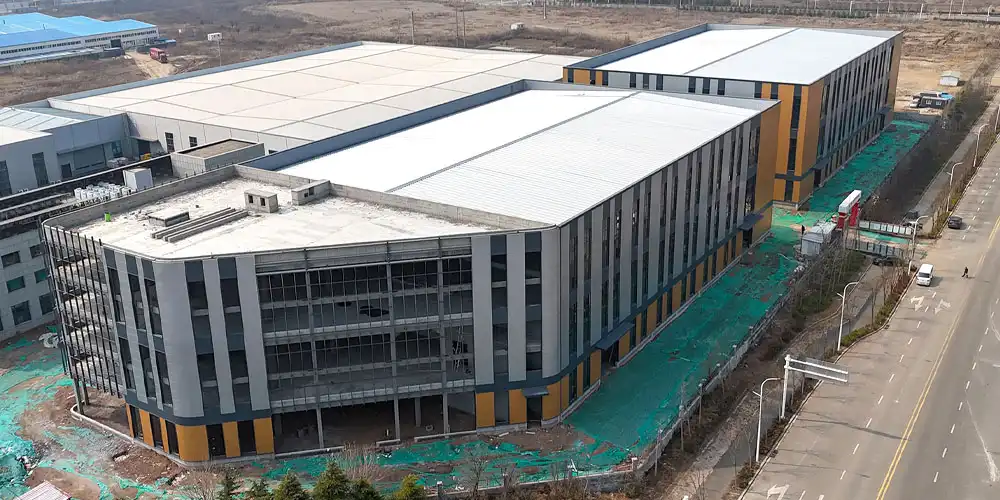

Key Engineering Checks for a Multi Slope Steel Retail Center

When planning a multi slope steel structure shopping center, the engineering verification process directly determines whether the building performs safely over its full service life. From load path analysis to corrosion protection, each checkpoint protects your investment and keeps the project on schedule. This guide walks B2B procurement professionals—project managers, engineering directors, and purchasing teams—through every critical step, so you can source with confidence and avoid costly rework.

Understanding Multi-Slope Steel Structures for Retail Centers

What Sets Multi Slope Geometry Apart

A multi-slope roof has two or more angled planes that spread the weight of the structure over a larger area than a single-slope roof can. This shape makes it less likely for stress to build up at the ridge line and improves natural drainage, so water doesn't pool on big industrial roofs as much. When floor space and clear gaps are important, like in shopping centers, this load distribution benefit immediately means fewer interior columns.

Steel Grades and Material Selection

Most commercial retail frames are made of High-Strength Low-Alloy steel, like ASTM A572 Grade 50 or Q355B, which both have yield strengths above 345 MPa. These grades are good for welded H-beams and box columns that are often used in shopping complex frameworks because they are both easy to weld and strong. Before fabrication starts, you should always ask the fabricator for material approval records, also known as mill test results.

Thermal and Insulation Performance

Composite floor decks made of steel decking and concrete reduce noise and provide structural diaphragm action. Mineral wool or PIR sandwich panels are often used for roof insulation, and U-values should be less than 0.35 W/m²K for climate-controlled store spaces. That's why these details are so important early on in the planning process: they have a direct effect on how comfortable tenants are and how much energy costs in the long run.

Core Engineering Checks for Multi-Slope Steel Structures

Structural Load Analysis

A business building like a multi slope steel structure shopping center with more than one hill needs to be checked for dead loads, live loads, wind uplift, and snow buildup. It changes the wind pressure across the surface because each roof plane meets at a different angle. The current US standard for figuring out wind and snow loads is ASCE 7-22. Any structural engineer who wants to follow this standard must use these factors on each hill separately. One of the most common reasons why roof panels fail in badly designed store projects is that this step wasn't taken.

Roofing, Drainage, and Waterproofing Review

Valley gutters, which are at the point where two slopes meet, can hold more water than regular eaves gutters. Engineers should figure out how big these valleys are by adding 25% to the amount of rain that falls in a 100-year period in the project area. Different people must sign off on the membrane laps, the compatibility of the sealant with the cladding system, and the flashing details at the parapet walls before the fabrication drawings can be approved.

Corrosion Protection and Maintenance Planning

Hot-dip galvanization according to ISO 1461 or an epoxy primer with a lot of zinc followed by two finish coats protects well in most coastal and urban areas. Magnetic pull-off gauges should be used to measure the thickness of the dry film to make sure that all structural members meet the finishing requirements. SSPC study shows that setting up a five-year review cycle from the start, instead of waiting for rust to show up, can add more than ten years to the building's useful life.

Comparing Multi Slope Steel Structures with Alternative Solutions

Steel vs. Concrete Frames

It takes longer to build and costs more to lay the foundations because concrete frames are heavier—about three times as heavy as a similar steel building. A business shopping center made of steel can be built 30 to 50 percent faster than a similar building made of concrete. This means that tenants can move in sooner and the investment returns faster. Intumescent coatings or cementitious spray can be used to make something fireproof. They can hit the same 2- to 4-hour rating as concrete without the extra weight.

Steel vs. Wood Frame Construction

Due to fire code and load limits, wood frame construction is not a good choice for retail spaces above two stories. Steel column grids allow clear spans of more than 30 meters without the need for intermediate supports. This is important for anchor tenant spaces and food court layouts that need open floor plans that can be changed. Because steel is flexible, it can also be used for future vertical additions, which is a big plus for retail development projects that are being built in stages.

Steel vs. Glass Facade Systems

As a covering for buildings, glass curtain wall systems look good, but they need a steel frame to support their weight. If you choose a steel main structure and an architectural cladding system like composite panels or insulated metal panels for a multi slope steel structure shopping center, you can get the same visual impact for less money and better thermal performance. This mix is usually used for business plazas that care about both how they look and how much energy they use.

Procurement and Project Execution Insights for B2B Clients

Picking the right fabricator is just as important as the engineering design. Before placing an order, procurement teams should check these main things:

• Certifications: Look for ISO 9001 quality management certification, CE marking for structural steel products, and COC or PVOC certificates where required by the destination market. These certifications confirm that production processes follow documented quality controls.
• Fabrication Capacity: A fabricator operating dedicated automatic welded H-beam lines and sandwich panel production equipment can maintain tighter dimensional tolerances—±2 mm on critical connections—than a general workshop. Verify annual output figures and whether the facility has handled projects of comparable scale.
• Turnkey Service Scope: Many procurement managers prefer a single-source partner covering structural design, fabrication, and coordination with MEP and façade systems. This reduces interface risk between trades and keeps design intent consistent from drawing to installation.
• Lead Time Transparency: Project-based production means the fabricator schedules your order after contract signature. Typical lead times for a mid-size retail steel package run 8 to 14 weeks depending on tonnage and coating complexity. Confirm this timeline against your site mobilization date early.

All of these things work together to protect procurement teams from the most common problems in the supply chain: mistakes in measurements made on the job site, problems with the finish found after the structure has been put together, and schedule delays caused by bad planning for production. It saves a lot of money and time to deal with them during the tender stage instead of the building stage.

Future-Proofing Your Multi Slope Steel Retail Center Advanced Fabrication and Smart Integration

With CNC-controlled equipment, automated welding lines can now make sure that the quality of the welds stays the same over long production runs. This lowers the number of rejects from non-destructive testing. Smart building integrations, which include sensor-based load tracking built into key structural connections, let site managers keep an eye on real-time data about how well structures are holding up, which supports condition-based care instead of planned replacement. Using this method lowers the long-term costs of running a business location.

Recycled Steel and Carbon Reduction

A lot of recovered steel is already in structural steel—usually between 60 and 90 percent in electric arc furnace production—which makes it one of the low-carbon building materials. By choosing steel with recycled material and planning for disassembly instead of destruction, a shopping center can better meet the growing demand for ESG reporting from investors and renters.

Predictive Upgrade Planning

By building the original structure with documented reserve capacity—an extra 10 to 15 percent live load headroom—upgrades to HVAC equipment or solar panels on the roof can be made in the future without having to change the structure. This foresight doesn't cost much during the design phase and saves a lot of money in the long run when engineers have to do expensive re-analyses.

Conclusion

To properly engineer a multi slope steel structure shopping center, you need to pay attention at every step, from figuring out the loads and drainage to stopping corrosion and making sure the source is qualified. When compared to concrete or wood frames, steel frames are faster, can span farther, and are more flexible. But these benefits only happen when the engineering checks are done correctly. Check the certificates of the materials, make sure the coating meets the requirements, and work with a fabricator whose output capacity fits the size of your project. Getting these basics right from the start will protect the budget, the schedule, and the long-term performance of the building.

FAQ

1. How long does a steel retail center structure typically last?

If you keep up with maintenance and coat your steel frame structure properly, it will last at least 50 years. In places with low rust, galvanized parts can go over that number without needing major repairs. The most important factor is how often the coating is inspected and how quickly it is fixed when damage is found.

2. What fire resistance rating does a steel shopping center structure achieve?

When the right amount of intumescent paint is applied to the steel structural members, they can resist fire for two to four hours, which meets IBC standards for Type IIA and Type IIB construction. It is common for a third company to certify the coating method.

3. How does delivery work for project-based steel structures?

Production is set to begin once the contract is confirmed. Fabricated parts come in numbered boxes that are linked to building plans, which makes it easy to put them together in the right order on-site. Depending on the size of the job, a retail steel package usually arrives 8 to 14 weeks after the order is confirmed.

4. Can the floor plan be reconfigured after construction?

Yes. Because a steel column grid can clear a lot of space, most of the walls inside are not structural. Most of the time, retail tenants don't need structural engineering approval to change the layout of their units or combine them.

Connect with Director Steel for Your Retail Center Project

Since 2011, Director Steel has built certified steel buildings for shopping malls, business plazas, and retail areas. With 40,000 m² of protected production space, six automatic H-beam lines, and a full design team in-house, we can help with projects from the beginning stages of planning to putting them up. We can provide shopping centers with a multi slope steel structure shopping center that is certified by ISO 9001, CE, COC, and PVOC. Email us at jason@bigdirector.com to get a price and engineering consultation that is tailored to your project.

References

1. American Institute of Steel Construction. Steel Construction Manual, 16th Edition. AISC, 2022.

2. American Society of Civil Engineers. Minimum Design Loads and Associated Criteria for Buildings and Other Structures (ASCE 7-22). ASCE, 2022.

3. SSPC: The Society for Protective Coatings. Good Painting Practice: SSPC Painting Manual, Volume 1, 4th Edition. SSPC, 2019.

4. European Committee for Standardization. Eurocode 3: Design of Steel Structures (EN 1993-1-1). CEN, 2022.

5. International Organization for Standardization. ISO 1461: Hot-Dip Galvanized Coatings on Fabricated Iron and Steel Articles. ISO, 2022.

6. Building Seismic Safety Council. NEHRP Recommended Seismic Provisions for New Buildings and Other Structures (FEMA P-2082). FEMA, 2020.
