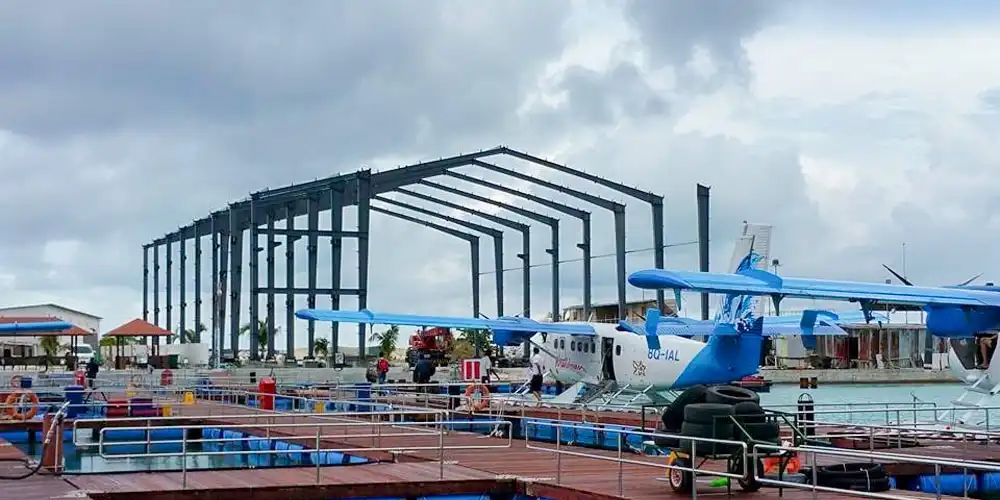

Aircraft Paint Hangar Structure: Design Guide for Safer Coating

An aircraft paint hangar structure is a purpose-built facility engineered to control the entire coating environment—from surface preparation to final curing. Unlike a standard maintenance hangar, this structure integrates explosion-proof electrical systems, laminar airflow systems, multi-stage air filtration, and precise humidity controls within a clear-span steel shell. Getting the design right protects workers, satisfies EPA and OSHA requirements, and directly affects finish quality. This guide walks through every major decision you need to make before breaking ground.

Understanding Aircraft Paint Hangar Structures: Key Design Considerations

Primary Functions and Typical Layout

One thing an aircraft paint hangar structure does is create a controlled space where dust, static, and fumes can be managed. Most of the time, the plane is placed in the middle of a wide, column-free floor plan. Ceiling plenum filters let air in, and it runs down or across the plane at 60 to 100 feet per minute (FPM), as required by ACGIH guidelines. Exhaust pits or wall louvers let air out. The width, height, and door opening are all the right size for the type of plane being serviced.

Structural Material Choices: Steel vs. Aluminum

Steel is the most common material for big aircraft paint hangar structures because its welded H-section frames can hold heavy HVAC plenums and fire-suppression pipes with plenty of room to spare. Structures made of aluminum are lighter, but they cost more per ton and can't hold as much weight. A welded H-beam primary frame with a strengthened bracing system gives wide-body airplanes the stiffness they need to keep their envelope intact when there are positive or negative pressure differences.

Insulation, Lighting, and Compliance Standards

To keep static electricity from building up and to protect against chemical cleaning agents, interior wall and ceiling covers must be made of panels that are non-flammable and solvent-resistant. At all working heights, the lighting must be at least 100 foot-candles and come from Class I, Division 1 explosion-proof lights with a Color Rendering Index above 90 to make sure colors are matched correctly. NFPA 409 Group I and NFPA 33 say that fire control must follow these rules. These design elements are required by law and must be confirmed by every procurement team before approving a facility design.

How to Build an Aircraft Paint Hangar Structure: Step-By-Step Guide

Planning, Site Assessment, and Regulatory Review

The project team needs a geotechnical study, a zoning review, and an environmental permit assessment for Volatile Organic Compound (VOC) pollution before they can order steel. Each state has its own rules for local fire marshals, so working together early on can save you a lot of money on redesigns. Sites close to airports must also meet FAA height rules. This preliminary work figures out the slab's width, the links to utilities, and whether the building needs a Regenerative Thermal Oxidizer (RTO) to treat the exhaust.

Choosing Between Prefabricated and Custom Frames

Prefabricated steel frames are good for standard aircraft sizes because they come pre-cut from the factory, which cuts down on the time needed for work to be done on-site. When tail heights are more than 30 feet or when the building needs to house more than one type of plane at the same time, custom frames are needed. Director Steel has six automatic welded H-beam production lines that cut down on the time it takes to make unique parts for an aircraft paint hangar structure compared to what most buyers expect. The business is certified by ISO, CE, COC, and PVOC, which makes it easy to record projects that take place in other countries.

Installing Environmental Systems: Ventilation, Filtration, and Fire Protection

After the primary steel structure is erected, mechanical contractors install the environmental envelope. Here are the core systems every aircraft paint hangar structure requires:

• Laminar airflow system: Downdraft configurations pull overspray downward and away from the fuselage, which cuts down on the need for rework. Cross-draft methods are cheaper when you can't build a concrete pit, but you have to carefully model the flow of air with them.
• Multi-stage filtration: Both the input and exhaust filters must meet NESHAP standards and usually capture 99.9% of the particles. Fan motors with Variable Frequency Drives (VFDs) can use up to 50% less energy during curing processes than older systems with only one pass.
• Fire suppression: Foam deluge or water deluge systems that follow NFPA 409 must be fully operational before any finishing work starts.

These systems work together to keep workers safe, limit VOC exposure, and keep the clean environment that paint quality requires. There is a safety risk and a compliance liability if you skip or don't fully describe any of them.

Real-World Case Study

A business MRO center in the U.S. Southwest used a self-supporting steel insert structure to make changes to an old repair hangar. The downdraft plenum and filter modules were supported by an inner steel frame made of welded H-section columns and beams. This was done without changing the original building shell. The time it took to go from fabrication to approval was 14 weeks. In the first year, the controlled environment cut down on rework cycles by a large amount, which led to an 18% drop in aircraft on ground (AOG) time.

Comparing Aircraft Paint Hangar Solutions: Making the Right Procurement Decision Prefabricated vs. Modular vs. Custom Designs

Most of the time, procurement managers have three choices. Prefabricated designs can be ordered and delivered the fastest, and they work well for companies that already have a standard fleet of planes. Adding bays as the fleet grows is possible with modular buildings, which makes them appealing to MRO businesses that are growing. Custom designs are made to fit specific needs, such as the cleanroom requirements of an OEM or the military RAM coating environment. Costs go up in that order, but so does how well the aircraft paint hangar structure works. Which option is best relies on the type of airplane, the amount of throughput, and how often the facility profile will change.

Energy Efficiency and Sustainable Materials

Sandwich panel wall and roof systems with high R-values are being used in more and more modern aircraft paint hangar structures to lower their heating and cooling loads. Director Steel has two dedicated sandwich panel production lines that can make 50,000 square meters of panels each year. This lets the company offer both the main steel frame and insulated panels under the same contract. This makes the buying process easier and makes sure that the thermal envelope matches the form of the structure.

Supplier Evaluation Criteria

Picking the right source for an aircraft paint hangar structure means looking at more than just price. Teams in charge of buying things should check that the seller has the right certifications (ISO, CE, COC, PVOC), look at how much they can make, see if they offer structure estimates and installation help, and see how good their after-sales service is. A provider who helps with design, manufacturing, and installation under one contract lowers the risk of coordination problems during different stages of a project. Director Steel works in all of these areas, and they have their own engineering team that helps with projects from the beginning to the end.

Ensuring Operational Safety: Fire Protection, Ventilation, and Maintenance Best Practices

Fire Detection and Suppression Standards

NFPA 409 divides aircraft hangars into groups based on their type. Group I hangars need the strictest fire safety measures. An aircraft paint hangar structure is the most dangerous because it has coatings that can catch fire. The standard is foam concentrate systems made for liquid fires that can catch fire. Smoke and heat detectors should be set up in different zones from the main fire alarm system so that the right people can be notified more quickly.

Ventilation and Air Quality Management

The speed of the airflow must stay between 60 and 100 FPM throughout the whole plane, not just at the plenum face. Thermal stratification creates dead zones where solvent fumes build up, which is bad for health and could start a fire. The method works as planned because it is tested regularly with an anemometer across the whole spray zone. Hazardous air pollutants (HAPs) are removed from exhaust air using RTO or zeolite concentrators before it is released. This keeps the facility in line with EPA 6H rules.

Scheduled Maintenance and Inspection Protocols

Because it is exposed to chemicals all the time, an aircraft paint hangar structure that doesn't get regular maintenance breaks down faster than almost any other industrial building. Filters, duct sealant, explosion-proof device ratings, and drain line operation should all be checked every three months. Full structural weld inspections and pressure differential testing of the envelope should be part of the yearly checks. Keeping records of these checks saves the user during regulatory audits and makes the facility last longer.

Conclusion

There are three decisions that must be made in order for an aircraft paint hangar structure to be safe and effective: a clear-span steel frame that is structurally sound, an environmental system that meets the right requirements, and a supplier who can provide both of these things with verified quality documentation. If you do any of these things wrong, it will cost more, take longer, and put your safety at risk. The design principles in this guide make it easy for project engineers and procurement managers to review proposals, ask the right questions, and feel good about their choices about where to get things.

FAQ

Q1: What factors drive the cost of a paint hangar facility?

The four things that affect cost the most are span width, clear height, airflow design, and filtering grade. More money is spent on a downdraft system with deep concrete pits than on a cross-draft system on a poured floor. Custom structure parts for planes that are too big add to the time and cost of making the plane.

Q2: How does ventilation quality affect coating results?

Overspray can't settle back on the plane's surface because of uniform laminar flow. Airflow that is too turbulent leads to fish-eye flaws and uneven film thickness, both of which need expensive repairs. As important as the paint itself is how well the air flows through the finish.

Q3: Can a modular hangar accommodate different aircraft sizes?

Yes. To fit different wingspans and tail heights, modular steel structures can be moved around or made longer. The important thing is to plan the foundation and door system so that they can handle future loads of growth.

Q4: What certifications should a supplier hold?

At the very least, you should look for ISO quality management, CE structural certification, and country-specific certifications like COC or PVOC to make sure the product is legal to import. These make sure that the methods used to make the product and the specs for the materials are in line with foreign standards.

Get a Custom Quote from Director Steel — Your Aircraft Paint Hangar Structure Supplier

Since 2011, Director Steel has built steel structures for hangars for airplanes, factories, and large buildings on several continents. Welded H-section frames, CE and ISO-certified fabrication, and an in-house engineering team make us a dependable maker of aircraft paint hangar structures for projects that need to be done precisely. Get in touch with us right away to talk about the details of your project. To get a price, email jason@bigdirector.com.

References

1. National Fire Protection Association. NFPA 409: Standard on Aircraft Hangars. 2022.

2. National Fire Protection Association. NFPA 33: Standard for Spray Application Using Flammable or Combustible Materials. 2021.

3. American Conference of Governmental Industrial Hygienists (ACGIH). Industrial Ventilation: A Manual of Recommended Practice for Design. 29th ed., 2019.

4. U.S. Environmental Protection Agency. National Emission Standards for Hazardous Air Pollutants: Aerospace Manufacturing and Rework Facilities (40 CFR Part 63, Subpart GG). 2008.

5. U.S. Occupational Safety and Health Administration. OSHA 29 CFR 1910.94: Ventilation — Spray Finishing Operations. 2020.

6. Steel Construction Institute. Design of Steel Structures for Industrial Buildings: SCI Publication P252. 2017.
