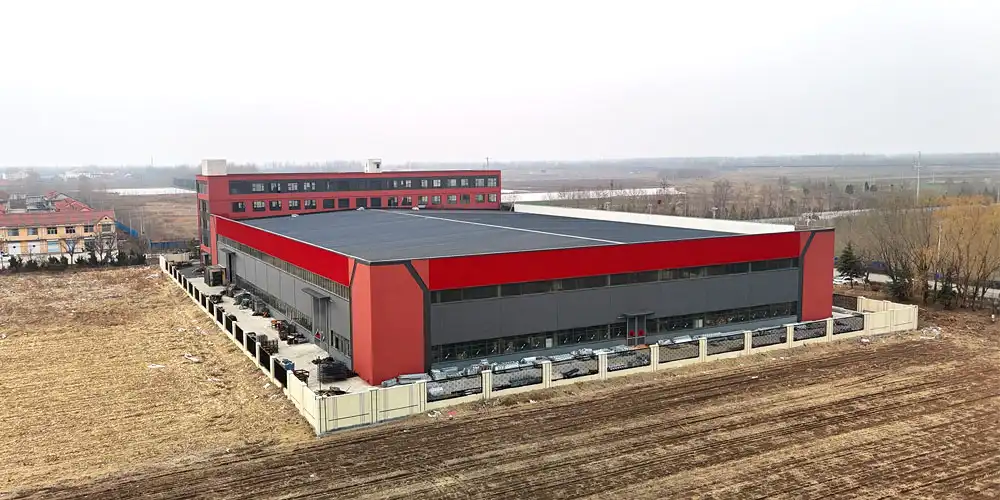

Cold Storage Steel Building Design: Insulation Options Compared

When designing a cold storage steel building, insulation is not a detail — it's the foundation of the entire facility's performance. The right insulation system determines how well your structure maintains target temperatures, controls energy costs, and protects stored goods across decades of operation. Whether you're managing a frozen food distribution hub or a pharmaceutical cold chain facility, this guide breaks down the core insulation options available, compares their real-world performance, and helps you make a confident procurement decision.

Understanding Cold Storage Steel Building Insulation

Why Insulation Defines Your Facility's Efficiency

Insulation in a cold storage steel building does a lot more than just keep cold air in. It makes a continuous thermal shell that stops heat from moving, stops moisture from moving, and keeps the solid steel frame from rusting due to condensation. The primary measurement is R-value — which stands for thermal resistance per unit width. Higher R-values mean that heat flow is more difficult to pass through, which directly lowers the amount of energy needed for cooling.

Depending on the climate zone and the temperature inside that needs to be kept, a well-insulated structure will usually have walls rated between R-30 and R-40 and roofs rated between R-40 and R-50. Vapor shields are just as important. If you don't control the moisture properly, condensation can get into the gaps between panels, hurt the insulation, and speed up the growth of mold. One of the most overlooked performance risks in refrigerated steel buildings is thermal bridging, which is when heat moves through steel structural members. This must be taken into account during the design phase.

Common insulation materials used in these situations include:

• Polyurethane (PUR) and Polyisocyanurate (PIR) sandwich panels are the standard for cold chain buildings.
• Expanded Polystyrene (EPS) is a cheap alternative to hard board.
• Extruded Polystyrene (XPS) is less likely to get wet than EPS.
• Mineral wool doesn't catch fire and blocks noise well.
• Fiberglass batts aren't often used in deep-freeze situations because they can absorb water.

Each material has its own cost, thermal, and mechanical properties that you need to match to the needs of your project.

Comparative Analysis of Insulation Options for Cold Storage Steel Buildings

Performance, Cost, and Environmental Profile Side by Side

To choose between types of insulation, you need to look at more than just the product info sheet. Here is how the top choices stack up against the most important procurement metrics for a cold storage steel building:

PIR and PUR sandwich panels offer the best thermal performance per millimeter. PIR usually has a heat conductivity of λ ≤ 0.022 W/(m·K), which is better than EPS's λ ≈ 0.036 W/(m·K). A 150mm PIR panel can achieve R-values that are the same as 250mm of EPS. This means that wall thickness can be cut down while usable interior volume can be increased, which is a big benefit in designing large warehouses.

EPS panels are much cheaper up front, and they can stay mechanically stable at temperatures as low as -25°C. They are often used in medium-sized cold shops that don't have a lot of money to spend on new equipment. But over time, EPS absorbs more water, which lowers its R-value. This is a lifetime cost factor that buying managers often don't take into account.

XPS is better at resisting moisture than EPS because it is made up of closed cells. This makes it a good choice for below-grade floor insulation where ground moisture is a concern.

Mineral wool is very resistant to fire (A1 non-combustible classification) and is often used in places with strict fire rules. It doesn't keep heat as well as PIR/PUR, but it's durable and flexible enough to be used as a secondary layer in wall systems.

From an ESG point of view, PIR panels with zero-ODP blowing agents and EPS panels with recycled content are becoming more common. This helps infrastructure owners and government companies meet their environmental reporting standards.

Designing for Optimal Insulation: Best Practices

Integrating Thermal Performance Into the Steel Structure

It's not the insulation material itself that fails most of the time in refrigerated cold storage steel building design; it's the joints. Where two panels meet, where door frames meet, where columns go through, and where the roof meets the wall are all places where thermal bridges can happen. As a professional, you should always design insulation systems that go all the way around structural members instead of stopping at them.

Factory-made sandwich panel kits and other modular premade insulation systems make installation mistakes much less likely to happen on-site. At Director Steel, our cold storage buildings are made with H-beam main steel frames, galvanized C/Z purlins, and a continuous PIR or PUR covering shell. This method gets rid of gaps made in the field and makes sure that the panel density stays the same (at least 40 kg/m³) across the whole thermal envelope.

Maintenance is just as important. Thermal imaging should be used to find holes in the insulation every year, joints should be resealed to stop air leaks, and door gaskets should be replaced. According to cold chain energy audit benchmarks, a single broken door seal can make the compressor run for 15–20% longer.

Case Studies: Successful Cold Storage Steel Buildings and Their Insulation Choices

Case Study 1 — Large-Scale Frozen Logistics Warehouse

For the walls of a 12,000 m² automated frozen goods distribution center that works at -22°C, 200 mm PUR sandwich panels were chosen, and a 250 mm PIR roof system was chosen. After the building was finished, energy tests showed that the fridge used 28% less energy than what was planned at the start of the project. The main performance driver was said to be the airtight panel jointing system, which was made with a polyurethane foam backer rod and vapor-barrier tape. Slotted connection holes were used in the structural steel frame to allow for thermal contraction of about 3–4 mm per 10m span at operating temperature.

Case Study 2 — Medium Cold Store with EPS Panel System

A regional produce cold store (2,800 m²) that works at +2°C to +6°C chose 150mm EPS panels because they were cheap and easy to install. The building always kept the temperatures it was supposed to, but it cost about 12% more each year to run than a similar PIR-insulated building. The company made up for this difference by spending less on original capital and upgrading equipment in stages. This trade-off is reasonable and valid for many people who store farm products and process food and are working within set project costs.

How to Choose the Right Insulation for Your Cold Storage Steel Building Matching Insulation Specifications to Project Parameters

To choose the right system for your cold storage steel building, you need to know four specifics about the project: the goal range of temperatures inside, the size and shape of the building, the climate zone where it will be used, and the total budget, which includes costs over its entire life. Here is a useful framework for matching:

• Deep freeze (-18°C to -40°C): Choose PIR or PUR panels that are at least 150–200 mm thick and make sure that all structural connections have thermal break details.
• Chilled storage (0°C to +10°C): 100–150 mm EPS or XPS panels are a good choice because they are cheap and strong.
• High-humidity environments: XPS floor insulation and PIR wall panels with sealed joints are better at withstanding wetness.
• Fire-sensitive applications (pharma, public facilities): Mineral wool or PIR with higher fire ratings should be evaluated alongside local building rules.

Before you finish the building plan, you should make sure that these details are correct with your structural engineer and insulation provider. Getting panels from manufacturers that are certified with both ISO9001 and CE ensures that the panels can be tracked and that the quality is always the same, which is important for project checks and regulatory inspections.

Conclusion

The insulation choice in a refrigerated cold storage steel building project has a direct effect on the long-term costs, compliance with regulations, and effectiveness of product safety. The thermal performance of PIR and PUR panels is the best. EPS and XPS panels offer cost-effective options, and mineral wool meets fire code requirements. There is no one best material; the best choice depends on your temperature goals, budget, and expectations for the facility's lifecycle. The best way to protect your investment is to make this choice during the planning phase instead of changing your mind after the building is done.

FAQ

1. What R-value is recommended for a deep-freeze cold storage building?

For buildings that are used at -18°C or lower, the insulation on the walls should be at least R-30 to R-40, and the insulation on the roof should be at least R-40 to R-50. This number takes into account the heat gain through the envelope and lowers the peak refrigeration load. The exact requirements rely on the climate in your area and the shape of your building. Before deciding on panel thickness, your structural engineer should do a heat load estimate.

2. Does insulation choice directly affect energy costs?

Without a doubt, yes. When comparing facilities of the same thickness, PIR-insulated ones consistently use less energy for cooling than EPS-insulated ones. Compared to an equivalent EPS panel, a 150mm PIR panel can cut heat ingress by 30–40%. This means that the compressor will run less and the building will use less electricity over its lifetime.

3. Can existing cold store insulation be upgraded without demolishing the structure?

Most of the time, yes. If the steel frame is still physically sound, new sandwich panels can be put on top of the old cladding, or insulating layers can be added to the inside. Before retrofitting, a thermal check using infrared scans should be done to find specific failure zones and figure out how to fix them in the most efficient way.
