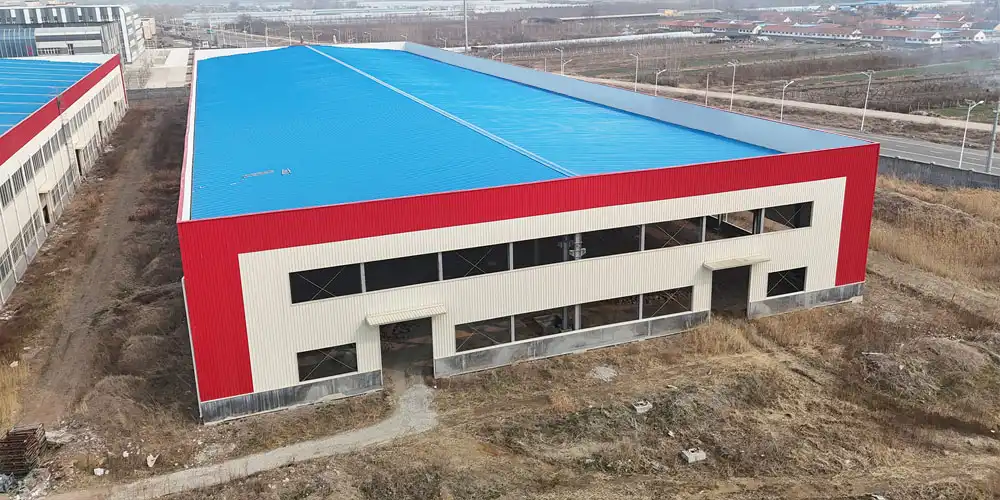

Slaughterhouse Steel Building Design for Hygienic Meat Processing

When building facilities for processing meat, the choice of building material has a big impact on how clean they are, how well they work, and how long they last. A Slaughterhouse Steel Building gives abattoirs and meat processing plants the strong structure they need to keep up with strict cleaning rules. Unlike regular buildings, these special steel structures can hold the weight of overhead train systems, are resistant to corrosive environments, and have smooth surfaces that keep germs from growing. With their hot-dip galvanised frames and insulated, clean wall panels, these buildings provide the temperature-controlled and tightly sealed spaces that are required by HACCP and USDA rules.

Understanding Slaughterhouse Steel Buildings and Their Hygienic Design Requirements

Modern meat handling needs equipment that can handle large amounts of work while still being completely clean. Slaughterhouse Steel Buildings designed for use in slaughterhouses are very different from regular warehouses and agricultural buildings. They were specifically designed to meet the needs of kill floors, evisceration rooms, and chilling chambers.

Core Components of Hygienic Steel Construction

Most buildings have rigid steel frames made of H-beams and columns made of Q355B or Q235B grade steel as their backbone. These frames are different because they have a high-tech surface treatment called hot-dip galvanisation, which adds zinc layers that are more than 600g/m², or 85 microns thick. This specification talks about the harsh environment that is made by animal fats, blood, and the harsh cleaners that are used every day for sanitation. Standard painted steel breaks down quickly when it comes in contact with chlorine-based cleaners and quaternary ammonium chemicals if it doesn't have this protection.

Polyurethane or PIR sandwich panels with smooth, non-porous covers are used for the walls and roof of shelters. The thermal resistance of these panels is high enough to keep temperatures between -40°C in blast freezing zones and +12°C in busy working areas. The smooth surfaces don't have any cracks where germs can hide, and the material can handle being washed under high pressure without breaking down. Our factory in China makes these panels with food-grade PVDF coatings that meet USDA approval standards. This way, the surfaces won't react chemically even after years of being cleaned in certain ways.

Regulatory Standards Shaping Design Decisions

Every choice about how to build an abattoir is based on rules about food safety. USDA rules say that places that are likely to get contaminated must be clearly separated from areas where the product has been finished. EU hygiene rules say that buildings must have drainage systems that keep water from standing and features that keep horizontal surfaces from collecting dust. These needs are turned into useful design elements, such as sloped floors built into the foundation plan, curved concrete pedestals that raise steel columns above wet areas, and the removal of exposed I-beams in favour of box sections that are enclosed and can be cleaned easily.

The first step in the design process for a Slaughterhouse Steel Building is to understand your specific regulatory environment. When processing plants ship to foreign markets, they have to go through extra checks and need to be certified by ISO 22000 and have infrastructure that meets HACCP standards. We work directly with project managers and sourcing teams to make sure that every part of the structure, from the plan of the foundations to the holes in the roof for ventilation equipment, meets the food safety standards that apply to your business.

Designing Slaughterhouse Steel Buildings for Optimal Hygiene and Efficiency

Creating a good facility design means putting together many systems that all work together to keep things clean and help people get things done quickly. The layout of a meat processing company needs to allow for constant flow without any slowdowns or risks of cross-contamination.

Ventilation Systems Managing Air Quality

Moving the air around in slaughterhouses is tricky in its own way. Areas where poultry is processed, especially boiling zones, are always steaming and have a relative humidity of 100%. Designs for longitudinal ventilation, like the ones we use in our enclosed steel livestock buildings, make sure that air flows at a steady rate, which gets rid of moisture and keeps temperatures stable. These systems have inlet louvres and exhaust fans that are placed in a way that creates directional airflow patterns. This stops airborne contaminants from moving from one processing zone to another.

The air system has to fit into the steel frame without affecting the strength of the building. Our engineering team figures out how much weight should be on the roof so that it can hold HVAC equipment, ductwork, and the extra static loads that ventilation units put on the roof. Planning well during the construction phase keeps the building shell airtight and avoids expensive retrofits. This keeps the negative pressure differentials needed for odour control while also making the building as energy efficient as possible.

Insulation and Temperature Control

Controlling temperatures has a direct effect on the quality of meat and the safety of food. Different steps of handling need different temperatures. For example, stunning areas should be at room temperature, evisceration rooms should be moderately cool, and holding coolers should be close to freezing. Through smart insulation placement and thermal break technology, Slaughterhouse Steel Buildings are great at making these multi-zone thermal settings.

Our insulated wall and roof pieces give the building a constant R-value throughout, which reduces energy loss and stops condensation from forming. The formation of condensation makes it easy for microbes to grow and speeds up the rusting of building parts. We get rid of these risks by selecting the right amount of insulation and using vapour barriers that are rated for high-humidity areas. The result is a building that keeps its temperature stable inside while using less energy than traditional building methods.

Drainage and Wastewater Management

Drainage that works well is probably the most important hygiene feature in an abattoir. To stop the growth of germs, blood, wash water, and organic waste must always be cleared. The floor system is connected to the steel frame thanks to good communication between the company that builds the concrete block and the company that makes the steel. Floors slope toward drains that are placed in a way that makes sure all the water drains away. Usually, the slopes are between 2% and 3%.

There are stainless steel or concrete guards in the bases of the columns that keep the wet floor from touching the steel structure. This detail makes the building last longer because it keeps water from constantly touching the frame, even when hot-dip galvanisation is used. The design also makes it easier to clean thoroughly, since the smooth changes between the floors and walls get rid of corners where dirt and grime can gather.

Material Comparison: Steel Versus Concrete

Purchasing managers often look at meat processing plants built of steel and concrete and decide which one is better. Concrete naturally doesn't catch fire, and its heating mass keeps temperatures stable inside. But because concrete is porous, it soaks up liquids, and bacteria live in tiny cracks on the surface. In places where things are being processed, fixing broken concrete surfaces takes a long time and requires special coatings.

Steel buildings, especially those with galvanised frames and stainless steel or coated panel interiors, have surfaces that bacteria can't get through and grow. Unlike concrete, which cracks over time, this material can handle repeated changes in temperature without breaking. Because steel is strong for its weight, it can be used in clear-span designs that don't have any internal columns. This makes processing floors that aren't blocked, which speeds up work and makes cleaning easier. Our facilities have completed projects with spans longer than 30 meters, which gives modern automated production lines the space they need to work.

Comparing Steel Buildings With Alternative Construction Types for Slaughterhouses

Choosing the best construction method has an effect on project timelines, costs over the life of the building, and operational flexibility. When buying, teams know the pros and cons of each building system, they can make choices that are in line with their working goals and budget limits.

Prefabricated Versus Custom Construction

Prefabricated Slaughterhouse Steel Buildings have big benefits in terms of how quickly they can be put together and how much they will cost. When parts are made in controlled factory environments, they go through strict quality control to make sure they are the right size and have the same material properties. Our factory has six automatic riveted H-beam lines that can handle up to 20,000 tonnes of weight each year. This lets us make standard parts quickly and send them straight to job sites.

Custom-designed buildings give you the most options for dealing with unusual site conditions or specific handling needs. This method works well for businesses that want to combine several processing steps under one roof or make changes to buildings that are already there. During the design process, engineers carefully look at your specific workflow needs, figure out how much weight will be supported by overhead rail systems, and work together with mechanical and electrical contractors. Both methods use steel because it is flexible. It is easier to change or add on to steel structures than to concrete ones, so your investment is safe as your business needs change.

Fire Resistance and Safety Considerations

Different places have different fire safety rules, but most of them say that structural elements must keep their load-bearing capacity for certain amounts of time during fires. Steel buildings get the fire ratings they need by using coverings or encasing systems, not the qualities of the steel itself. When exposed to heat, intumescent paints expand, making layers of insulation that protect the steel frame. On the other hand, spray-applied cementitious coatings protect less visible parts of structures from fire in a cost-effective way.

When steel buildings are built correctly, they are sealed and have fire control systems built in. This protects people and property completely. Modern slaughterhouses have smooth interior surfaces and few flammable materials, so they have a lower fire load than buildings with exposed insulation or wooden structural elements.

Environmental Footprint and Sustainability

Steel construction fits in with the growing focus on being environmentally friendly in industrial growth. Steel is still the most recycled building material in the world. Usually, 90% of structural steel is made from recycled steel. When their useful life is over, steel building parts can still be salvaged and used for something else or recycled without losing any of their quality.

Most industrial sites have the biggest effect on the world when they use less energy while they're running. Because our insulated sandwich panels are better at keeping heat in and cold air out, they lower the amount of carbon dioxide that is released into the air when they are used. Adding natural light through parts of see-through panels further cuts down on energy use while making working conditions better. These features help with LEED certification and show stakeholders and governmental bodies that the company cares about the environment.

Procurement Guidance for Slaughterhouse Steel Buildings

To get through the supplier selection process, you need to look at more than just the initial price quotes. The right manufacturing partner adds value by offering scientific know-how, dependable delivery dates, and full support throughout the entire project lifecycle.

Evaluating Supplier Credentials

Certifications are a manufacturer's objective proof of their skills and dedication to quality standards. Our ISO 9004 certification shows that we follow systematic quality management procedures at all stages of production. The CE mark shows that a product meets European safety and environmental standards, which is important for businesses that sell to customers in other countries. COC and PVOC certifications make it easier to get through customs and show that you meet the standards of the destination country.

Check out a supplier's project experience and client references in addition to their qualifications. Companies that have been around for a while and have worked on a wide range of projects have shown that they can handle projects of varying levels of difficulty. Our company has worked on business buildings, aeroplane hangars, and farm facilities for 12 years, which gives us the cross-industry knowledge that is useful for specific jobs like meat processing facilities.

Understanding Cost Components

The price of a Slaughterhouse Steel Building depends on many things, such as the cost of the materials, how hard it is to make, how the panels are finished, and how the building will be shipped. As of 2024, the market is showing that steel prices have stabilised after being unstable in the past. This is good news for capital projects. Transparent providers give thorough quotes that break down these parts, which makes it easier to plan a budget and have conversations about value engineering.

Made-to-order production models, like the way we do things at DFX, get rid of the costs of keeping inventory while making sure that every part exactly fits your project needs. This way of making things saves money without limiting the ability to customise them. When comparing quotes, don't just look at the price of the steel package. You should also think about how much the whole project will cost, including the foundation needs, site preparation, and installation support.

Installation and Long-Term Maintenance

A well-designed building will only work as well as it was intended if it is installed correctly. As part of our service, we design structures, make them, deliver them, and help with installation. This way, we can keep things running smoothly from engineering to construction. This unified method stops problems that usually happen when designers, fabricators, and erection crews don't talk to each other clearly.

Compared to painted steel or other materials, galvanised steel structures don't need as much maintenance. Periodic inspections check the integrity of the roof and wall panels to make sure that the sealants and fasteners are still working. The smooth, washable surfaces keep things clean during operations and make regular upkeep easier, which lowers the costs over the life of the product. Setting up service agreements with suppliers for regular inspections and warranty coverage will protect your investment and keep the building running at its best for the next 30 to 50 years.

Conclusion

When meat processing businesses choose the right building system, they have to weigh the costs of meeting regulations, running the business efficiently, and the system's long-term value. Slaughterhouse Steel Building construction provides the clean surfaces, strength, and environmental control that are needed for modern slaughterhouses. The material doesn't rust and can be designed in a variety of ways. It can also be installed quickly, which makes it the first choice for procurement managers and project engineers who are building new facilities or growing current ones. Steel buildings have been a reliable part of safe, efficient meat processing for decades, thanks to careful supplier selection and attention to design details.

FAQ

Q1: What advantages do steel buildings offer for meat processing environments?

Slaughterhouse Steel Buildings have many important advantages, including surfaces that don't let bacteria grow, the ability to support heavy overhead rail systems, resistance to the corrosive chemicals used in sanitation, and clear-span designs that make layouts for work easier. Total cost of ownership is lower because the material lasts longer in high-humidity areas and needs less upkeep than concrete or wood building.

Q2: How long does design and installation take for prefabricated structures?

Project timelines are different for each building type and size. Standard prefabricated designs usually need 8 to 12 weeks for engineering and production, and then another 4 to 8 weeks for installation on-site. In order to meet specific needs, custom-designed buildings may add a few weeks to these timelines. Getting makers involved early on in the planning stages of a project helps keep things on schedule and find problems before they happen.

Q3: What ventilation standards maintain hygiene compliance?

What kind of ventilation is needed depends on the processing activities and the rules that apply. In general, systems must have minimum air exchange rates that keep airborne contaminants from spreading and humidity from building up. Longitudinal ventilation systems, which are popular in animal facilities, work well in slaughterhouses too. They keep the air moving, which helps control temperature and smells while meeting USDA and EU hygiene standards.

Partner With DFX for Your Slaughterhouse Steel Building Project

The engineers at Qingdao Director Steel Structure Co., Ltd. are experts at making clean steel buildings for tough meat preparation jobs. With more than 200 skilled workers and 40,000 square meters of enclosed production space, we offer full solutions, from planning the initial design to helping with the installation. As a company with a lot of experience making Slaughterhouse Steel Buildings, we know the unique problems that procurement managers and project engineers face when they try to make buildings that are compliant and work well.

Contact jason@bigdirector.com to discuss your project requirements. We provide detailed quotations, structural calculations for your specific processing equipment, and material certifications demonstrating compliance with international food safety standards.
